New products
New products
zł159.94 tax excl.

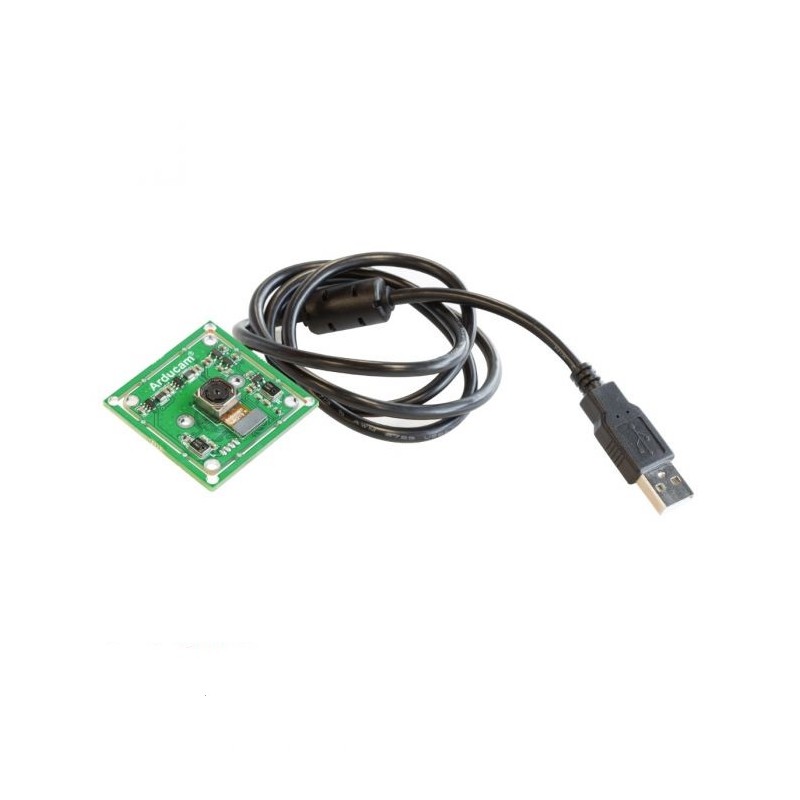

Camera with a resolution of 8 MPx with a USB interface. Equipped with a CMOS IMX219 sensor with a lens with a viewing angle of 60° and an autofocus function. ArduCAM B0292
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Camera with USB interface equipped with CMOS IMX219 1/4” sensor with 8 MPx resolution. It has an integrated IR filter and a lens with a field of view of 60°. The camera can take pictures with a resolution of 3264Hx2448V and record videos at 15fps@3264x2448. It has a built-in autofocus function and is powered from the USB port. The module works with native drivers (compatible with UVC) built into Windows, Linux, Mac and Android, making the installation of the camera easy and intuitive. It will be used for monitoring 3D printing, videoconferences or in projects of mobile robots. It can be connected to both desktops and laptops, as well as minicomputers such as Raspberry Pi or Jetson Nano.
Features
- Sensor: 1/4” CMOS IMX219
- Resolution: 8MP 3264Hx2448V
- Data format: MJPG / YUY2
- Frame rate: MJPG 15fps @ 3264 x 2448, 30fps @ 1080P; YUY2 15fps @ 720P, 20fps @ 640 x 480
- Field of View (FOV): 60° (H)
- Lens mount: M12
- Integrated IR filter, only visible light
- Automatic calibration of saturation, contrast, sharpness, white balance, exposure
- System Compatibility: Windows, Linux, Mac and Android with UVC
- USB 5V power supply
- Working current: 200 mA
- Working temperature: -20 to 70°C
- Dimensions: 38 x 38 mm
- USB cable length: 1 m
Kit contains
- ArduCAM 4K 8MP IMX219 Autofocus USB Camera module
- USB 2.0 cable 1 m
Data sheet
- Resolution
- 8MPx
- Interface
- USB 2.0
- Sensor
- Sony IMX219
- IR filter
- Yes
- Lens assembly
- none
