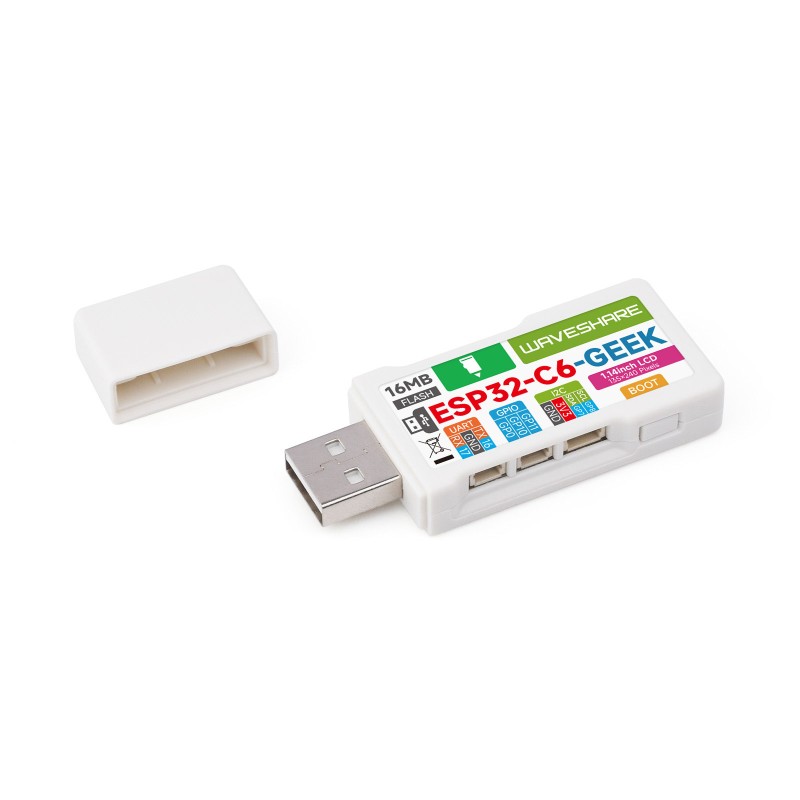

Main View
search
  • Main View
  • Angled View – Front
  • Angled View – Back
  • Angled View – Front (Rotated)
  • Dimensions
ID: 1203368
zł52.39
Tax included

zł42.59 tax excl.

Development board featuring the ESP32-C6 (32-bit RISC-V up to 160 MHz), equipped with a 1.14″ IPS color LCD (240 × 135 px), 2.4 GHz Wi-Fi 6, and Bluetooth 5 (LE). Includes 16 MB Flash, TF card slot, USB-A port, and GPIO, UART, and I2C headers. Designed for IoT projects, wireless applications, and programming education. Waveshare ESP32-C6-GEEK

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The Waveshare ESP32-C6 GEEK is a compact development board based on the ESP32-C6 microcontroller featuring a 32-bit RISC-V core running at up to 160 MHz. It integrates 512 KB SRAM, 320 KB ROM, and 16 MB of onboard NOR Flash memory, providing sufficient resources for IoT and wireless communication applications.

The board includes a 1.14″ IPS color LCD display with 240 × 135 resolution, driven by the ST7789 controller via a 4-wire SPI interface. It supports 2.4 GHz Wi-Fi 6, Bluetooth 5 (LE), Bluetooth Mesh, and IEEE 802.15.4 (Zigbee 3.0 and Thread), enabling modern low-power wireless system development.

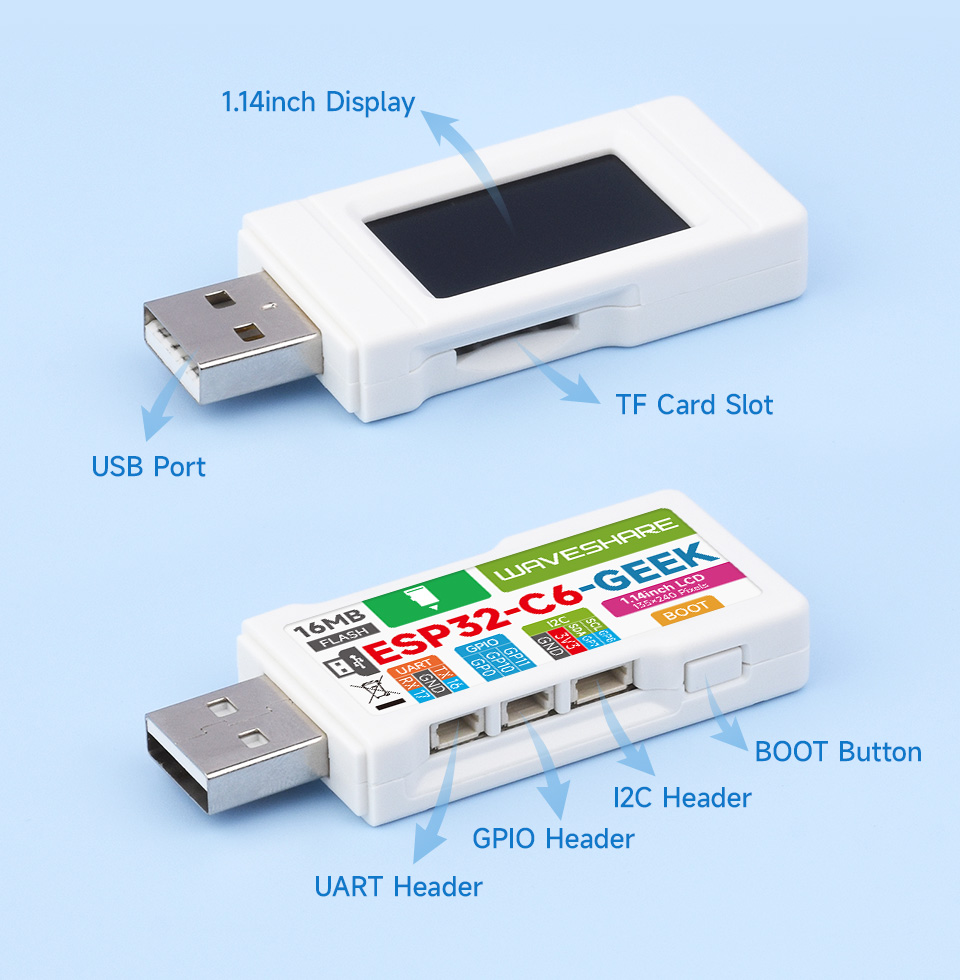

Additional onboard features include a TF card slot for external storage, a USB-A male connector for direct PC connection, a BOOT button, and accessible UART, I2C, and GPIO headers. The board is enclosed in a white plastic case. Open-source examples and documentation are available online to simplify development and learning.

The board is suitable for IoT devices, Wi-Fi 6 and Bluetooth applications, Zigbee/Thread systems, as well as educational and experimental projects.

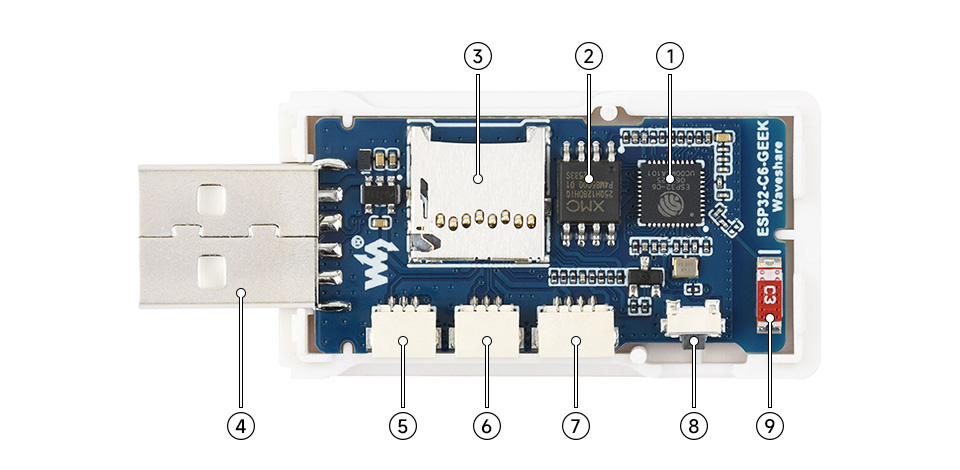

  1. ESP32-C6
  2. 16MB NOR Flash
  3. TF card slot
  4. USB-A port
  5. UART header
  6. GPIO header
  7. I2C header
  8. BOOT button
  9. Onboard antenna

Features

  • Microcontroller & Memory
    • Chip: ESP32-C6
    • Architecture: 32-bit RISC-V
    • Clock frequency: up to 160 MHz
    • SRAM: 512 KB
    • ROM: 320 KB
    • Flash memory: 16 MB NOR
  • Wireless Connectivity
    • Wi-Fi: 2.4 GHz Wi-Fi 6
    • Bluetooth: Bluetooth 5 (LE), Bluetooth Mesh
    • IEEE 802.15.4: Zigbee 3.0, Thread
    • Antenna: onboard
  • Display
    • Type: IPS, 65K colors
    • Size: 1.14″
    • Resolution: 240 × 135 pixels
    • Driver IC: ST7789
    • Interface: 4-wire SPI
    • Active area: 24.91 × 14.86 mm
    • LCD module dimensions: 61.00 × 24.50 mm
    • Operating voltage: 3.3 V / 5 V
  • Interfaces & Connectors
    • USB-A male port
    • TF card slot
    • UART header (3-pin)
    • GPIO header (3-pin)
    • I2C header (4-pin)
    • BOOT button
  • General Parameters
    • Enclosure: white plastic case
    • Power supply: via USB
    • Weight: approx. 0.015 kg

Kit includes

  • ESP32-C6-GEEK ×1
  • SH1.0 3-pin cable (~100 mm) ×2
  • SH1.0 4-pin cable (~100 mm) ×1
