zł21.48 tax excl.

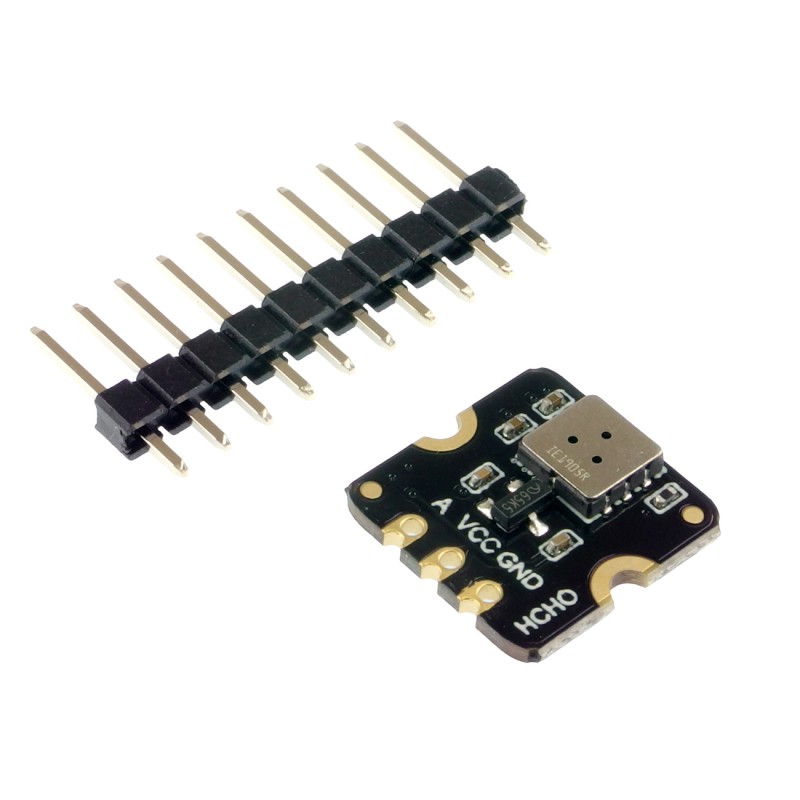

Module with a formaldehyde sensor made in MEMS technology. It allows gas detection in the range of 0 to 3 ppm and has an analog output. DFRobot SEN0563
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Module with a formaldehyde sensor that uses electromechanical microsystem (MEMS) technology, thanks to which the sensor has a compact size, low power consumption, short acquisition time and fast response. It can measure concentrations from 0 to 3 ppm and is suitable for leak alarms, e.g. in portable gas detectors. The sensor has an analog output and is supplied with a voltage of 3.3 V to 5 V. Full documentation and sample programs are available on the product page.
Features
- Detected gas: HCHO
- Detection range: 0 to 3 ppm
- Output signal: analog
- Sensitivity: R0 (in air)/Rs (in 0.3ppm HCHO) ≥ 3
- Working temperature: -10 to 50℃
- Operating humidity: 15 to 90% RH (non-condensing)
- Lifespan: ≥5 years (in the air)
- Power supply: 3.3 to 5V
- Operating Current: <20mA
- Dimension: 13x13x2.5mm
Kit contains
- Fermion: MEMS Formaldehyde HCHO Gas Detection Sensor
- Goldpin male connector
Data sheet
- Interface
- Sygnał analogowy
- Type of sensor
- inny
- Power supply voltage
- 3,3 - 5 V
- Concentration measurement
- HCHO
