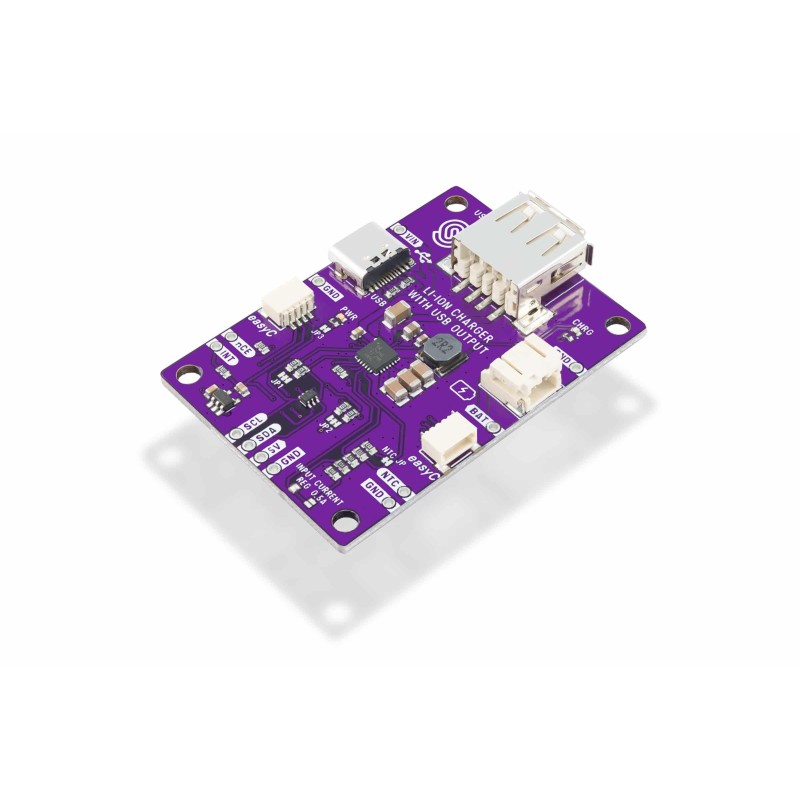

  • Main view
  • Top view
  • Bottom view
  • Kit includes
ID: 1208274
zł51.84
Tax included

zł42.15 tax excl.

Charger module for single-cell Li-Ion and Li-Pol batteries, based on the BQ24295 IC. It supports CC/CV charging at up to 3 A, an input voltage range from 4.35 V to 17 V and power path management, allowing simultaneous battery charging and powering of the connected device. Soldered 333075

24h
Available
Available quantity: 3

Description

The module uses the BQ24295 charger controller designed for charging single-cell lithium-ion and lithium-polymer batteries. The IC implements CC/CV charging with constant-current and constant-voltage stages, while the maximum charging current reaches 3 A. The wide input voltage range from 4.35 V to 17 V allows the board to be powered from various sources, including USB ports and suitable power adapters.

Integrated power path management allows the battery to be charged while simultaneously powering the connected circuit, reducing interruptions in operation when an external power source is available. The board features Qwiic connectors and a 5 V USB output, making it suitable for portable systems powered by a single Li-Ion or Li-Pol cell, mobile devices and projects requiring battery-backed power.

Features

  • Charger controller: BQ24295
  • Supported batteries: single-cell Li-Ion and Li-Pol
  • Charging method: CC/CV
  • Maximum charging current: 3 A
  • Input voltage range: 4.35 V to 17 V
  • Power Path management
  • Simultaneous battery charging and powering of the connected device
  • 5 V USB output
  • Qwiic connectors
  • Compatible with 3.3 V and 5 V logic levels
  • Board dimensions: 54 x 38 mm
  • Pin pitch: 2.54 mm
  • Breadboard-compatible design
  • LEGO-compatible mounting hole spacing
  • Arduino library available
  • Manufacturer: Soldered
  • Product code: 333075
