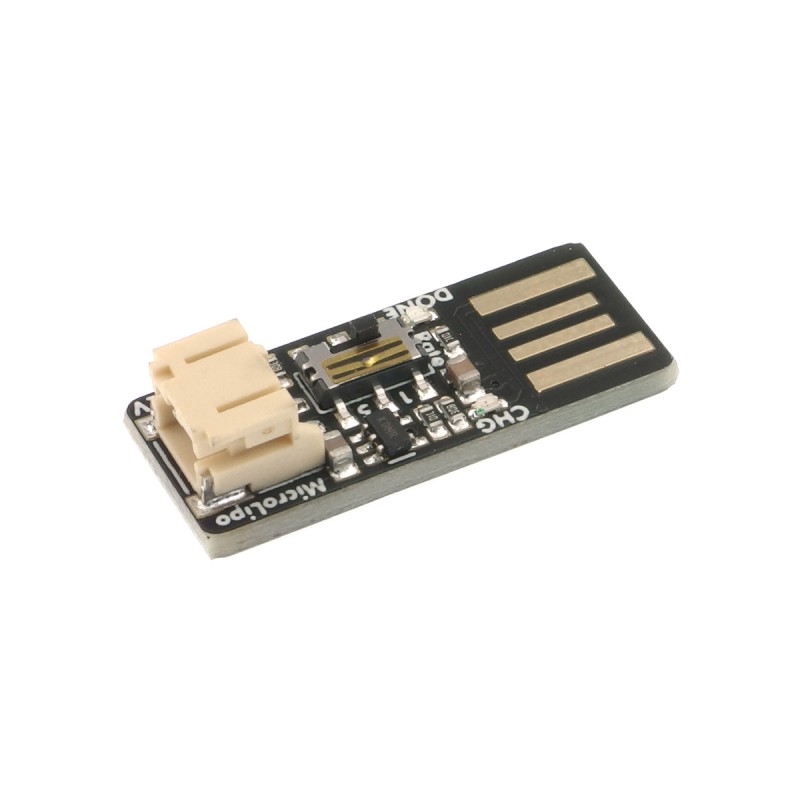

Micro Lipo USB LiIon/LiPoly charger v2 - LiPo and LiIon battery charger module
ID: 203851
5906623428489
zł38.73
Tax included
zł31.49 tax excl.
Charger module dedicated to single-cell LiPo and LiIon batteries. Equipped with a JST-PH battery connector and gold-plated pads for plugging into the USB connector. Adafruit 1304
Description
Charger module dedicated to charging single-cell LiPo and Li-Ion batteries. It can charge cells with a nominal voltage of 3.7 V with a maximum charge current of 100 mA in default mode or 500 mA in fast charge mode. The cells are connected to the board via the JST-PH connector, and the charging source via the USB connector (gold-plated pads). There are also two LEDs on the board that indicate charging. The module is small in size. It will be used both as a separate charger for small LiPo and LiIon cells, as well as as part of a larger project. Full documentation is available on the product page.
Features
- MCP73831 chip
- Designed for charging LiPo and LiIon 3.7 V batteries
- Charging current: 100 mA (default), 500 mA (fast charging)
- Switch to change the charging current
- Battery connector: JST-PH 2.0
- Charging connector: gold-plated pads plug into the USB connector
- Two diodes indicating charging
- Dimensions: 30 x 12.5 x 8mm
Kit contains
- Charger module
- JST PH2.0 cable
