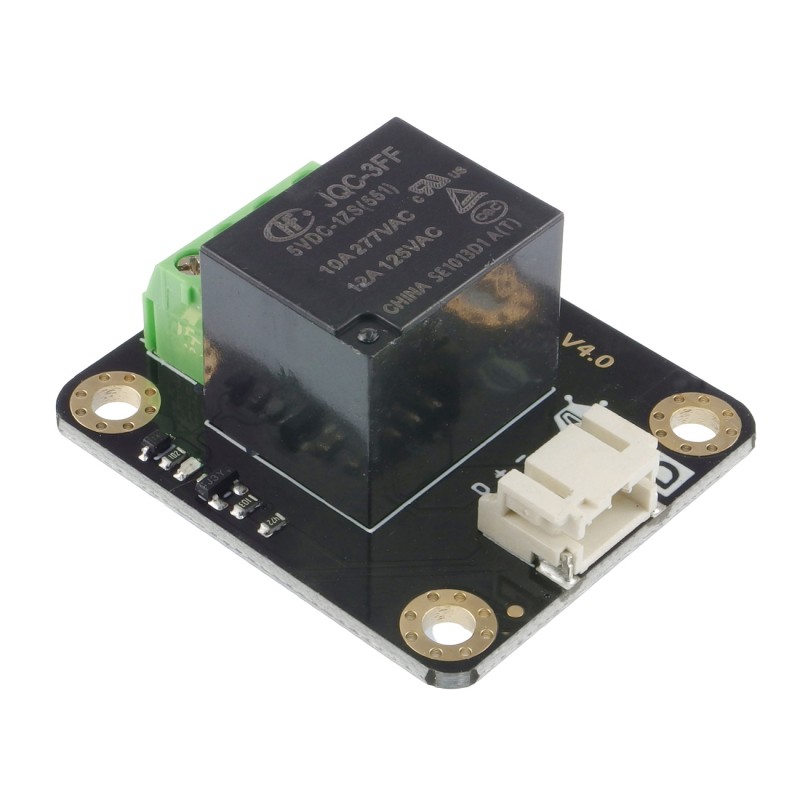

DFRobot Gravity - Module with 5 A relay
ID: 570107
5902186313477
zł12.63
Tax included
zł10.27 tax excl.
Module with 5 A 250 VAC relay. DFRobot DFR0017
Description
DFRobot module with relay. The relay coil is supplied with 5 V voltage. The relay activation time is 10 ms.
properties
- Module with one relay
- Recommended continuous current of contacts: 10 A (NO) 5 A (NC)
- Digital control
- Control signal: TTL
- Gravity connector
- Contact rating: 10 A 250 VAC / 24 VDC
- Maximum switching voltage: 250 VAC / 30 VDC
- Maximum switching current: 15 A
- Maximum switching power: 250 VA 240 W
- Relay activation time: 10 ms
- Disconnection time of the relay: 5 ms
- Gold plated module pads
Included
- Module with 5 A relay
- Gravity connection cable
570107
Data sheet
- Output current
- 10A
- Number of channels
- 1
- Executive element
- Przekaźnik
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
