New products
zł61.83 tax excl.

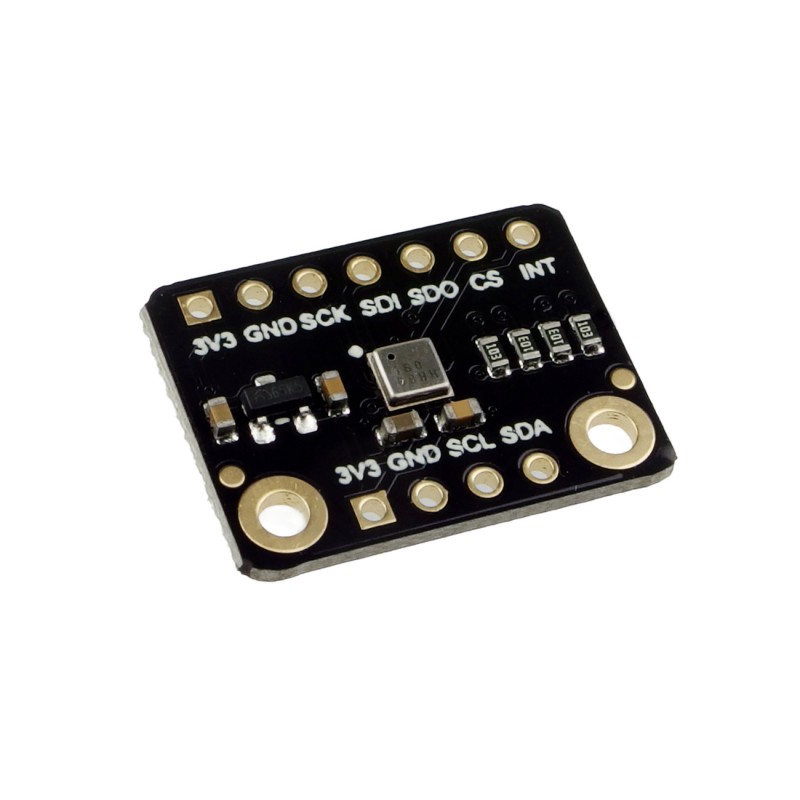

Air quality sensor module based on the ENS160 system. It communicates via the I2C or SPI interface. DFRobot SEN0515
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Air quality sensor module based on the ENS160 system. It has been specially designed for indoor air quality monitoring and offers the detection of multiple IAQ parameters (TVOC, eCO2, AQI). The innovative TrueVOC ™ technology provides the sensor with the highest accuracy, fast response and protection against interference. The module is powered with the voltage of 3.3 V and communicates via the I2C or SPI interface. Full documentation is available on the product Wiki page.
Features
- I2C, SPI interface
- I2C address: 0x52 or 0x53 (default)
- ECO2 measuring range: 400 to 65,000 ppm
- TVOC measurement range: 0 to 65,000 ppb
- Power supply: from 3.3 V.
- Current consumption: 29 mA
- Working temperature: -40 to 85 ℃
- Working humidity: 5 to 95% RH
- Dimensions: 20 x 15 mm
Kit contains
- Fermion: ENS160 Air Quality Sensor
- Straight 4-pin goldpin connector
- Straight 7-pin goldpin connector
Data sheet
- Interface
- SPI/I2C
- Type of sensor
- inny
- Power supply voltage
- 3,3 V
- Concentration measurement
- VOC/CO2
