Pico Jumbo Board - a large development board with a Raspberry Pi Pico 2
ID: 1199002
zł115.98
Tax included
zł94.29 tax excl.
A scaled-up, fully functional version of the Raspberry Pi Pico 2, designed for learning, demonstrations, and educational workshops. The board is based on the modern RP2350 microcontroller with two Arm Cortex-M33 or RISC-V Hazard3 cores clocked at up to 150 MHz, 520 KB of SRAM, and 4 MB of Flash memory. Large pads and holes allow for solderless connection of components using alligator clips. Pimoroni PIM747
Description

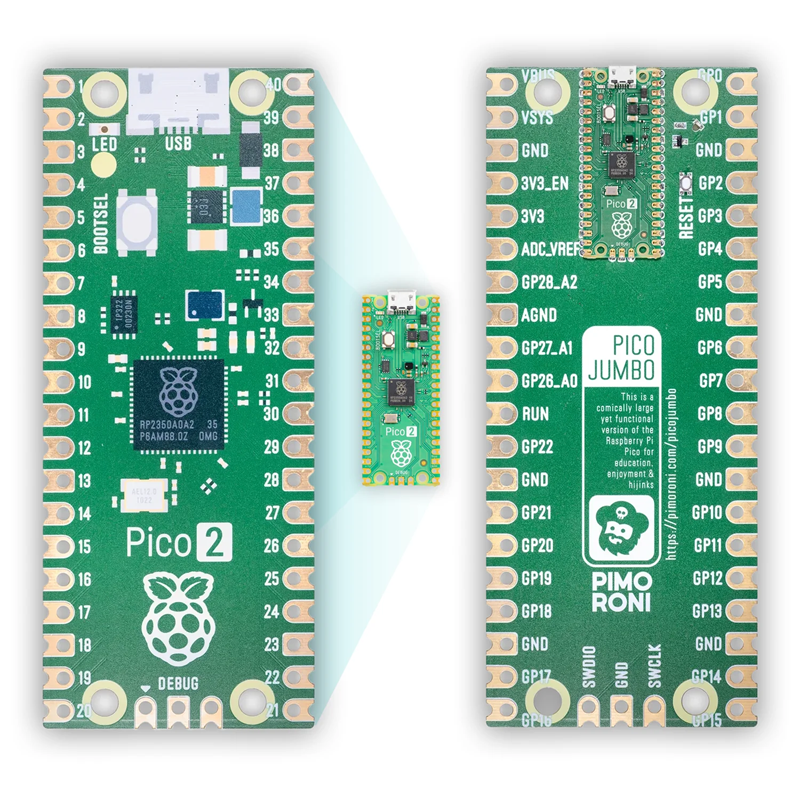

Pico Jumbo Board is a scaled-up yet fully functional version of the Raspberry Pi Pico 2, created for demonstrations, learning, and the pure joy of experimenting with electronics. The board has been enlarged to approximately 3.5× the standard size, making it highly visible and comfortable to use during workshops, presentations, or educational classes. At its core is the modern RP2350 microcontroller, offering significantly higher performance and functionality than the classic RP2040. This chip can operate on two Arm Cortex-M33 cores or RISC-V Hazard3 cores, providing great flexibility for a wide range of projects.
Additional features such as expanded PIO capabilities, low-power operating modes, and support for video output make it a modern development platform. Large pads and mounting holes allow easy connection of components using alligator clips, with no soldering required. Pico Jumbo is also equipped with a dedicated RESET button, significantly improving comfort during testing and experimentation. It is an ideal solution for STEM education, content creators, teachers, and anyone who wants to present electronics in an accessible and fun way.
Features
- Microcontroller: Raspberry Pi Pico 2 (RP2350)
- CPU: 2× Arm Cortex-M33 or 2× RISC-V Hazard3, up to 150 MHz
- SRAM: 520 KB (on-chip)
- Flash memory: 4 MB QSPI
- Power and programming: micro-USB
- Large pads and holes – ideal for alligator clip leads
- On-board RESET button
- Display feet included
- Programming: C/C++ and MicroPython
- Dimensions: 180 × 73.5 × 5.5 mm
1199002
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 4 MB
- Number of I/O
- 26
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 180 cm
- Width
- 73,5 mm
- USB connector type
- USB type C
