An educational platform based on the modern RP2350 microcontroller with two Arm Cortex-M33 cores up to 150 MHz, 520 KB of SRAM, and 16 MB of Flash memory. It features a 2.8" color IPS display with a resolution of 320 × 240 pixels, six user buttons, a piezo speaker, and a mini breadboard for solderless prototyping. Numerous GPIO, ADC, servo connectors, alligator clips, and two Qw/ST ports enable quick connection of sensors and actuators. Pimoroni PIM720

4 weeks
On request
Kamami is the official distributor of Pimoroni modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

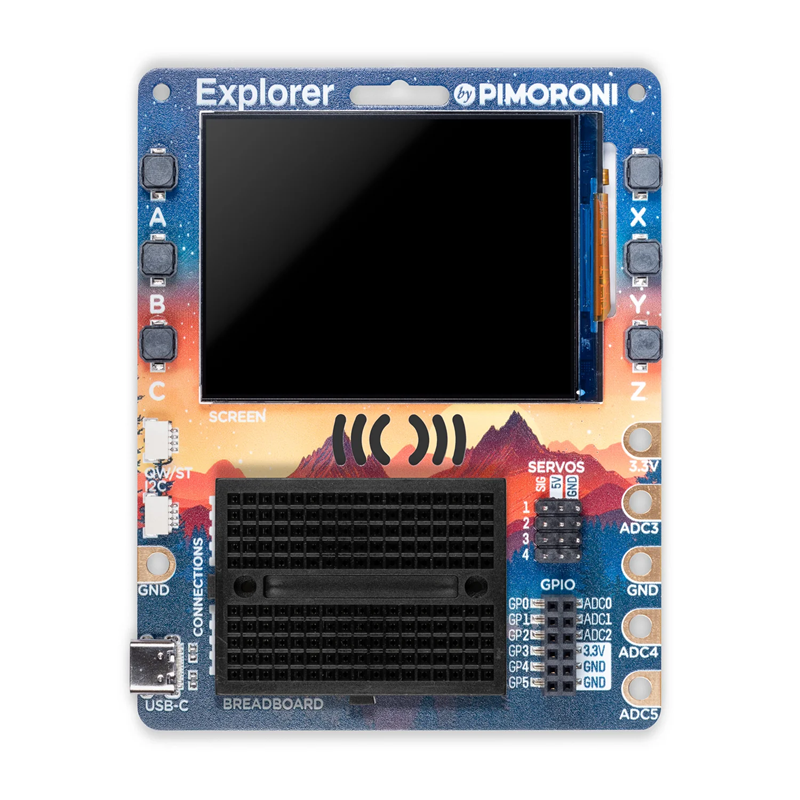

Pimoroni Explorer is a versatile and robust educational platform designed for experimentation, learning, and creative prototyping. At its core is the modern RP2350 microcontroller, delivering high performance and great flexibility for electronic projects. The RP2350 offers modern Arm Cortex-M33 cores or optionally RISC-V, enhanced PIO capabilities, advanced low-power modes, extended security features, and support for DVI/HDMI video output. In practice, this results in a significant performance boost—up to 2× faster in MicroPython and up to 20× faster floating-point calculations in C/C++—as well as improved task handling thanks to increased RAM and the option to use external PSRAM.

Explorer allows users to build projects, conduct scientific experiments, and create small robots and interactive inventions. On board is a 2.8” color IPS display, enabling clear presentation of data, menus, and measurement results. Six large touch buttons make it easy to control projects without connecting additional components. The built-in piezo speaker allows the generation of sounds, alerts, and simple audio effects. A miniature breadboard and numerous GPIO and ADC breakouts make Explorer ideal for learning electronics without soldering. Servo connectors enable quick creation of moving projects such as vehicles or manipulators. Additional terminals for alligator clip leads simplify work in classroom and workshop environments. Thanks to Qw/ST connectors, modern I²C sensors can be easily connected. Explorer is an ideal choice for STEM education and beginner makers.

Features

  • Microcontroller: RP2350B (2× Arm Cortex-M33, up to 150 MHz)
  • Memory: 520 KB SRAM, 16 MB QSPI Flash (XiP)
  • Display: 2.8” IPS LCD, 320 × 240 px
  • LCD controller: ST7789V, brightness 250 cd/m²
  • Power and programming: USB-C
  • Built-in piezo speaker
  • Mini breadboard for prototyping
  • 6 user buttons + Reset and BOOT buttons
  • Breakouts: GPIO, ADC, servo connectors (4× 3-pin)
  • 6 terminals for alligator clip leads
  • 2 × Qw/ST connectors (Qwiic / STEMMA QT)
  • JST-PH battery connector (mobile projects)
  • Programming: C/C++ and MicroPython
  • Fully assembled, no soldering required
  • Dimensions: 107 × 85 × 16 mm
1199004

Data sheet

Microcontroller
RP2350
Flash memory
16 MB
Number of I/O
6
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
107 mm
Width
85 mm
USB connector type
USB type C
