RP2350 Development Board with 4.3inch 800x400 Touch LCD(with case) - Waveshare 33167

Description

Waveshare 33167 is a development board designed for creating user interfaces, control systems, and industrial and embedded applications. The device is based on the RP2350 microcontroller, which features a unique dual-core and dual-architecture design, allowing operation on either ARM Cortex-M33 cores or Hazard3 RISC-V cores. This enables flexible selection of the development environment according to project requirements.

The board is equipped with a 4.3-inch IPS capacitive touch display with a resolution of 800 x 480 and a color depth of 65K, providing wide viewing angles and smooth user interface operation. The display supports 5-point capacitive touch with communication via the I2C bus and interrupt support, enabling the creation of advanced HMI interfaces.

                                                                                                                          For a dedicated plastic enclosure

Integrated CAN, RS485 and I2C communication interfaces, as well as isolated digital inputs and outputs, allow easy integration with sensors, actuators and automation systems. Support for active and passive digital inputs, as well as optically isolated digital outputs, enables operation in industrial environments.

The device supports a wide power supply voltage range from 7 V to 36 V DC and includes a built-in lithium battery charging circuit. The applied plastic enclosure facilitates installation in end applications and increases the mechanical durability of the device.

                                                                                                                   Supports multiple peripheral devices

                                                           Enables expansion with multiple peripheral devices via CAN, RS485, I2C and isolated I/O interfaces

The board supports programming in C/C++, MicroPython and using the Arduino IDE, offering extensive documentation resources and examples to enable quick startup.

                                                                                                                                     Controller board layout

1. RP2350B - Dual-core and dual-architecture design, up to 150 MHz operating frequency
2. Debug interface
3. Optocoupler isolation
4. 4.3inch display panel connector

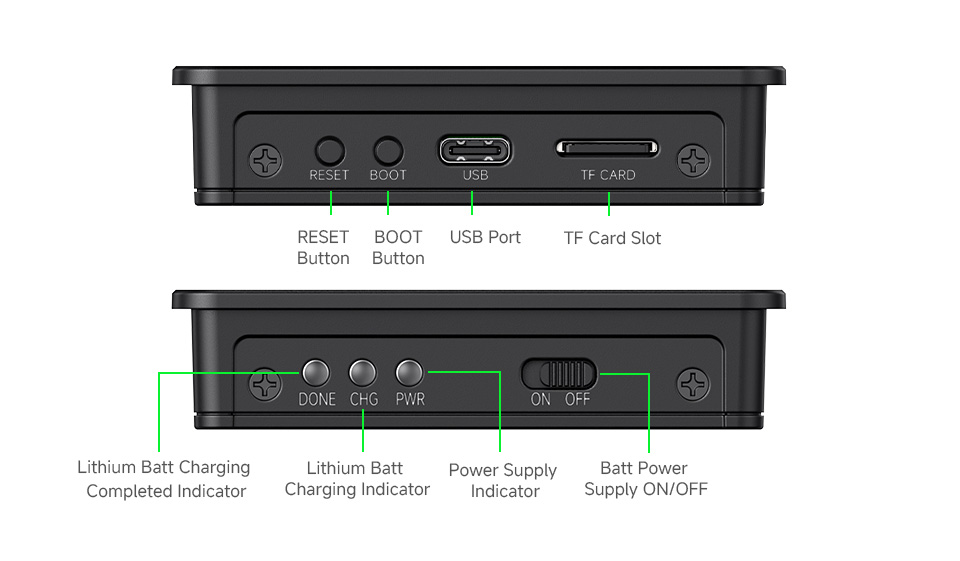

5. Status Indicators - DONE: Lithium Batt charging completed indicator; CHG: Lithium Batt charging indicator; PWR: Power supply indicator (the CHG will blink and DONE will light on when connecting with DC power supply and without Lithium Batt connected or Batt switch is OFF)
6. RTC Batt holder - specification: CR927
7. MX1.25 Lithium Batt header - for 3.7V Lithium Batt, supports charging and discharging, with charging current of up to 500mA
8. Batt power supply ON/OFF - ON: connect the Batt; OFF: disconnect the Batt
9. CAN and RS485 terminal resistor switches - disabled by default
10. Digital input - 5V ~ 36V, supports passive / active input (NPN or PNP)
11. Input signal common terminal - NC: dry contact passive input - Connect to power supply positive: digital input low active, for NPN wet contact active input, 5V ~ 36V DC; Connect to power supply negative: digital input high active, for PNP dry contact active input, 5V ~ 36V DC
12. Digital output - 5V ~ 36V, open-drain output, output load: 450mA per channel (MAX)
13. RS485 port screw terminal
14. CAN port screw terminal
15. I2C port screw terminal - VOUT pin output 5V/3.3V (switching by onboard resistor)
16. 7V ~ 36V DC power supply terminal
17. Touch panel connector
18. RESET button
19. BOOT button - Press it when resetting to enter download mode
20. USB Type-C port - for programming, USB 1.1 with device and host support
21. TF card slot
22. 2MB PSRAM
23. 16MB Flash
24. XL2515QF20

Features

• Microcontroller
  • Model: RP2350B
  • Architecture: Dual-core, dual-architecture
  • Cores:
  • 2 x ARM Cortex-M33 or
  • 2 x Hazard3 RISC-V
  • Maximum operating frequency: 150 MHz
• Memory
  • RAM memory: 520 KB SRAM
  • Flash memory: 16 MB
  • PSRAM memory: 2 MB
• Display
  • Diagonal: 4.3 inch
  • Panel type: IPS
  • Resolution: 800 x 480
  • Number of colors: 65K
  • Viewing angle: 160°
• Touch panel
  • Type: Capacitive
  • Number of touch points: 5
  • Interface: I2C
  • Interrupt support: yes
• Communication interfaces
  • CAN: available
  • RS485: available
  • I2C: available
  • USB: USB 1.1 (device and host)
• Digital inputs and outputs
  • Digital inputs:
  • Voltage range: 5 V ~ 36 V
  • Modes: passive and active (NPN, PNP)
  • Digital outputs:
  • Type: open-drain
  • Voltage range: 5 V ~ 36 V
  • Maximum load current: 450 mA per channel
• Power supply
  • Supply voltage: 7 V ~ 36 V DC
  • Lithium battery support: 3.7 V
  • Maximum charging current: 500 mA
• Additional functions
  • RTC with battery backup
  • Built-in temperature sensor
  • Low-power modes
  • Drag-and-drop programming via USB
  • 12 programmable PIO state machines
• Physical elements
  • Buttons: RESET, BOOT
  • TF card slot
  • USB Type-C port
  • Battery power switch

Kit includes

• 1x RP2350-Touch-LCD-4.3B-BOX development board with enclosure
