USB 2MP camera with a Sony 1/2.8 inch sensor, M12 lens with a 95 degree field of view, and support for 1080p video at 30 fps, intended for operation in low light conditions. ArduCam B052001

4 weeks
Awaiting delivery
Kamami is the official distributor of ArduCAM cameras and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

ArduCam B052001 is a compact USB camera with a resolution of 2 MP, based on a Sony CMOS sensor with an optical size of 1/2.8 inch and a wide dynamic range of 80 dB. The module is used in vision systems requiring image capture in low light conditions, with a sensitivity of 0.01 lux.

The camera is equipped with a pinhole lens with an M12 mount and a metal CNC-machined housing that acts as both a mounting holder and a heat dissipation element. The device supports the UVC standard and communicates via a USB 2.0 interface, enabling use in Windows, Linux, and Mac OS systems without the need to install additional drivers.

Features

  • Sensor
    • Sensor: Sony
    • Sensor type: CMOS
    • Sensor resolution: 2 Mpix
    • Shutter type: Rolling shutter
    • Optical format: 1/2.8 inch
    • Pixel size: 2.9 µm x 2.9 µm
    • Active sensor area: 1937 x 1097
  • Video output
    • Output format: MJPEG, YUY2, H.264
    • Video modes:
    • 1920 x 1080 @ 30 fps
    • 1280 x 720 @ 30 fps
    • 800 x 600 @ 30 fps
    • 640 x 480 @ 30 fps
    • 320 x 240 @ 30 fps
    • YUY2:
    • 1920 x 1080 @ 5 fps
    • 1280 x 720 @ 10 fps
    • 640 x 480 @ 30 fps
  • Lens
    • Focus type: Manual
    • Lens mount: M12
    • Focal length (EFL): 3.7 mm
    • Aperture: F2.5
    • Field of view (D/H/V): 95° / 82° / 66°
    • IR filter: Integrated IR-cut filter, visible light only
    • Focus range: 1 m - infinity
  • USB interface
    • Interface: USB 2.0
    • Connector: USB Type-C
    • UVC compliant: Yes
  • Power and mechanics
    • Operating voltage: 5 V +/- 5%
    • Maximum power consumption: 1.1 W
    • Dimensions: 19.5 x 15 x 17.3 mm
    • Housing material: CNC metal
  • Functionality and compatibility
    • Supported operating systems: Windows, Linux, Mac OS, Android
    • Supported UVC controls: brightness, contrast, saturation, sharpness, gamma, white balance, gain, exposure
  • Environmental conditions
    • Operating temperature: 0°C ~ 70°C

Kit includes

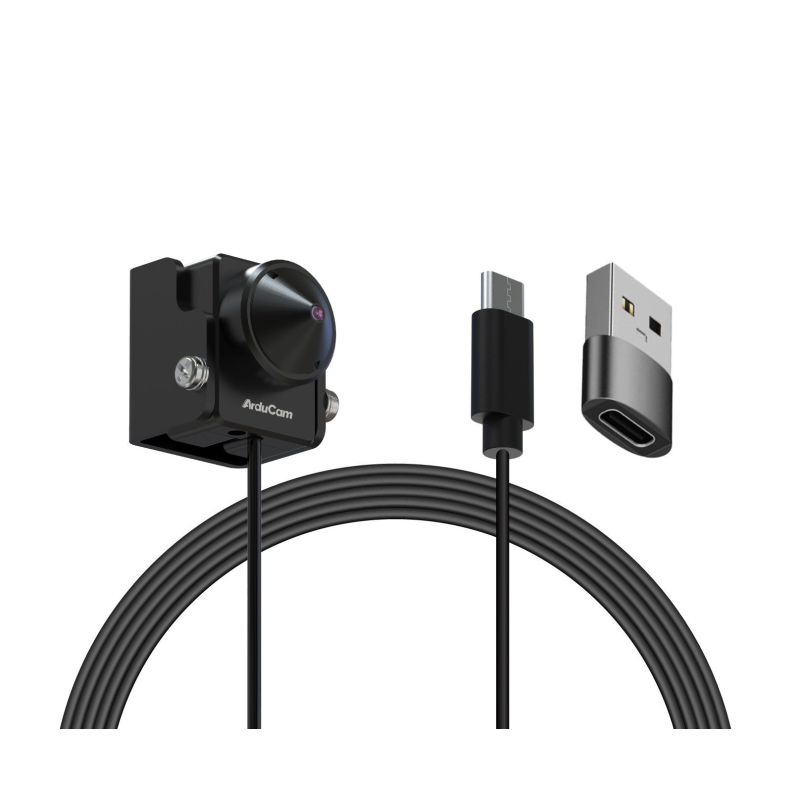

  • 1x ArduCam B052001 USB camera module
  • 1x USB Type-C cable, 1 m
  • 1x USB Type-C to USB-A adapter
  • 1x Metal mounting holder
1203013

Data sheet

Resolution
2Mpx
Interface
USB 2.0
Sensor
SONY
IR filter
Yes
Lens assembly
M12
