Clipper HAT Mini - 4G LTE module for Raspberry Pi
ID: 1198991
769894025796
zł221.20
Tax included
zł179.84 tax excl.
Compact 4G LTE HAT for Raspberry Pi, ideal for remote IoT projects operating without Wi-Fi. Includes SIMCom A7683E modem, SIM connector, SMA antenna, user buttons and Qw/ST port for easy expansion. No soldering required and great for mobile or field installations. Pimoroni PIM717
Description
Clipper HAT Mini is a compact expansion module for Raspberry Pi that enables 4G LTE cellular connectivity. It's the perfect solution when you want your project to work reliably anywhere in the world, regardless of WiFi availability. It's ideal for outdoor events, remote locations, or mobile installations such as beehives, boats, or bicycles. Sensor data transmission over a cellular network consumes very little data, so even a small data plan can last a long time.

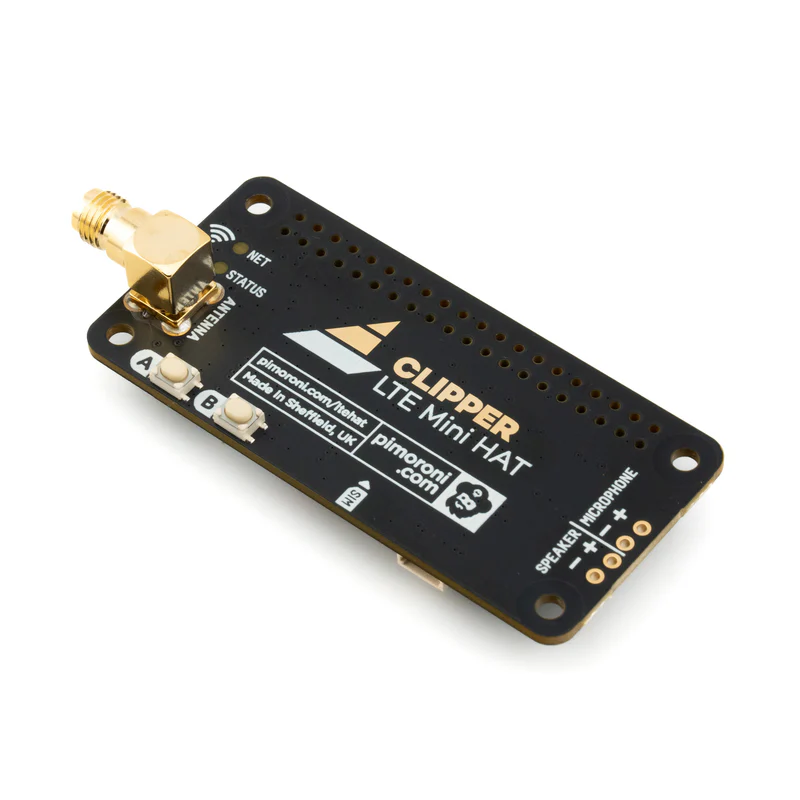

The HAT features an LTE SIMCom A7683E module, a SIM card slot, an SMA connector for attaching an antenna, and LEDs indicating connection status. Two user buttons provide easy interaction, and the Qw/ST connector allows for quick sensor and extension integration using the Qwiic/STEMMA QT standard. No soldering is required—just plug it into a Raspberry Pi with a 40-pin GPIO header. This is a practical and compact solution for IoT projects that require reliable internet connectivity in harsh environments or far from local networks.
Note!
The kit does not include an antenna. It must be purchased separately.Features
- 4G LTE module: SIMCom A7683E
- Supported bands: LTE-FDD B1/B3/B5/B7/B8/B20/B28
- Operated via AT commands (SIMCom AT-Command Manual)
- SIM card slot
- 2 user buttons (labeled A and B)
- STATUS and NET LEDs indicating module status
- SMA connector for external antenna (antenna sold separately)
- Qw/ST connector (Qwiic/STEMMA QT) for I2C extensions
- Unpopulated pads for speaker and microphone connection
- Pre-soldered female GPIO header (for Raspberry Pi)
- Height with Raspberry Pi Zero 2 W and 10 mm spacers: approx. 23 mm
- Power consumption (VDD): standby 17 mA, sleep mode 0.12–1.63 mA, peak transmission up to 700 mA
- Average current draw during active use: 50–100 mA
- Compatibility: Raspberry Pi (with 40-pin GPIO header)
- Dimensions: 65 x 30 x 17 mm
