ID: 1190093
zł14,299.00
Tax included

zł11,625.20 tax excl.

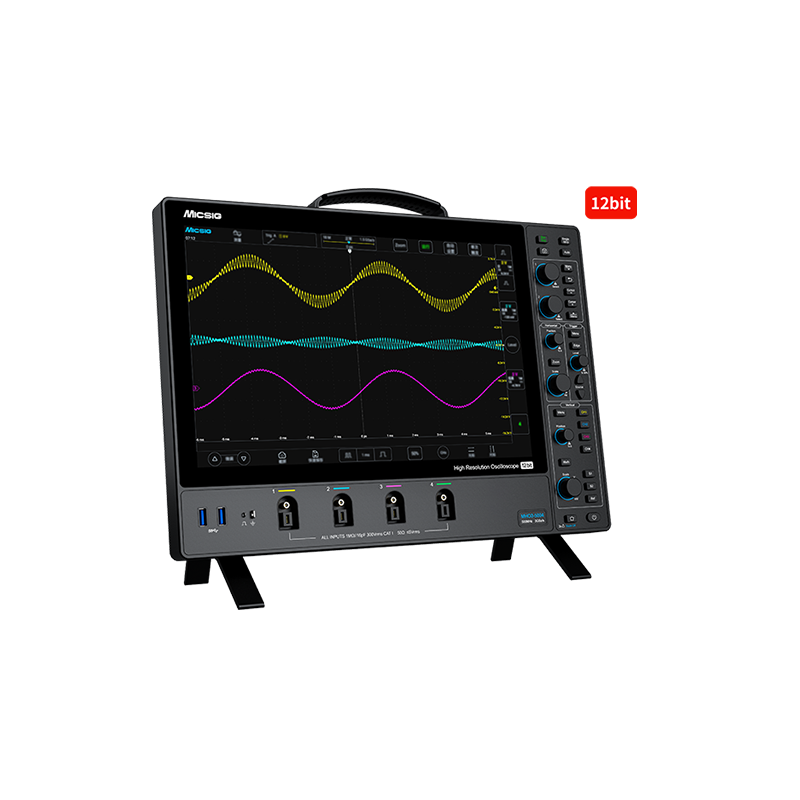

4-channel digital oscilloscope offering a 350 MHz frequency band and a sampling rate of up to 3 GSa/s. It has a built-in memory with a depth of 360 Mpts. It is equipped with a 14-inch touch screen with a resolution of 1920 x 1200 pixels. Micsig MHO3-3504

4 weeks
On request
Kamami is the official distributor of Micsig oscilloscopes and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The MHO3-3504 is a 4-channel fifth-generation digital oscilloscope offering a 350 MHz bandwidth and a sampling rate of up to 3 GSa/s. It features a built-in memory depth of 360 Mpts. Equipped with a 14-inch touchscreen display with a resolution of 1920 x 1200 pixels, it ensures clear signal waveform visualization. The MHO uses a high-resolution 12-bit ADC with a quantization level of up to 4096—16 times more than traditional 8-bit ADCs—allowing users to observe waveform details more comprehensively and clearly. It features an ultra-thin design (only 3.58 cm thick) and supports VESA mounting, significantly saving desk space.


Thanks to the proprietary Mic-OPI™ probe interface, the oscilloscope automatically detects the attenuation factor of the passive probe, enabling immediate and precise calibration. This solution eliminates the need for manual configuration and improves measurement accuracy. The device is equipped with a standard BNC adapter, ensuring compatibility with a wide range of accessories. Additionally, it offers a rich set of connectors, including USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger Out, and more, facilitating integration with various testing environments.

The oscilloscope's noise level is less than 80 μVrms at full 500 MHz bandwidth, allowing engineers to accurately capture weak but important signals during daily circuit debugging. The deep memory of up to 360 Mpts ensures excellent signal fidelity, while segmented memory divides limited space into several small segments, collecting multiple trigger events into one memory area. This allows for repeated capture of target signals over extended periods and playback for further analysis.


The MHO 3 series features an exceptionally user-friendly interface. It runs on the dedicated SigTestUI™ operating system, specially developed for measurement instruments. With 10 years of UI design experience, the interface has been maximally simplified, allowing even new users to master it within just 5 minutes.

Hardware filtering allows selective passing or blocking of signal components within a specific frequency range, which is very useful for analyzing specific signal frequency bands or observing changes in particular frequency components. In addition to standard passive probes, the oscilloscope supports connections with all Micsig probes: optical isolated probes, high-voltage differential probes, and AC/DC current probes, allowing both the probes and the oscilloscope to operate at peak performance.

Features

  • Bandwidth: 350 MHz
  • Rise time: 1 ns
  • Analog channels: 4
  • Real-time sampling rate: 3 GSa/s
  • Memory depth: 360 Mpts
  • Maximum waveform capture rate: 230,000 wfms/s
  • Noise: <80 μVrms
  • Vertical resolution: 12-bit
  • Trigger types: edge, pulse width, logic, nth edge, pulse, slope, timeout, serial bus
  • Bus decoding: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B
  • Interfaces: USB 3.0 Host, USB Type-C, HDMI, Trigger Out
  • Display: 14-inch touchscreen, 1920 x 1200 pixels
  • Mobile app, PC remote control, SCPI commands
  • SigTestUI™ user interface
  • 32 GB internal memory
  • VESA mounting support
  • Power supply: 100 to 240V AC, 50/60Hz
  • Dimensions: 400 x 280 x 35.8 mm
  • Weight: 4.3 kg

Kit contains

  • Oscilloscope
  • 4 x Passive probe
  • 4 x MSP-BNC adapter
  • Power supply
  • Power cord
1190093

Data sheet

Type of oscilloscope
Digital
Bandwidth
350 MHz
Sampling rate
3 GSa/s
Memory depth
360 Mpts
Number of channels
4
