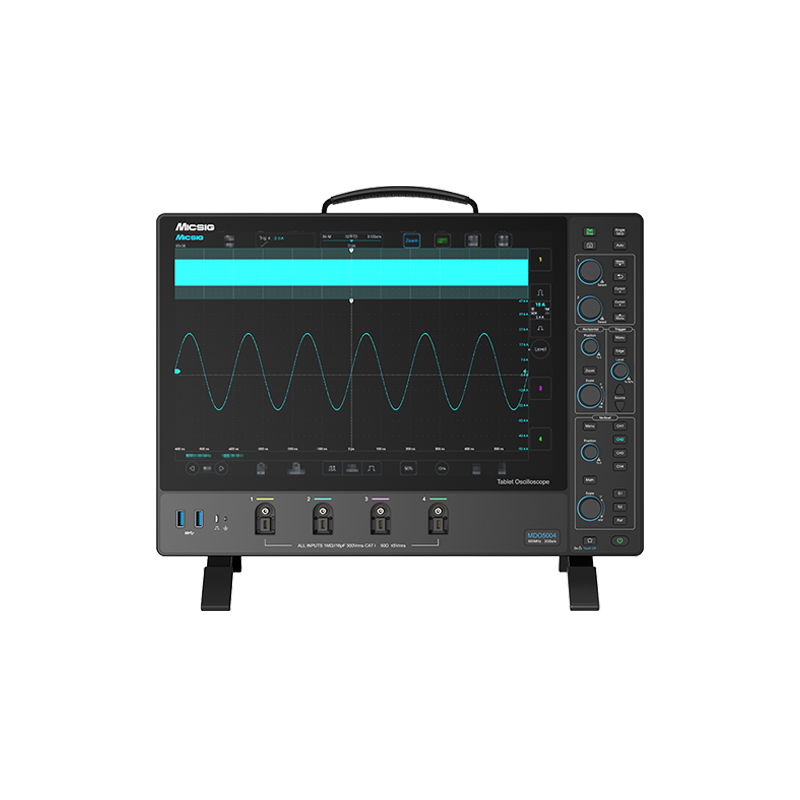

4-channel digital oscilloscope, which offers a frequency band of 250 MHz and a sampling rate of up to 3 GSa/s. The device has a built-in memory with a capacity of 360 Mpts, guaranteeing long-term data recording without losing details. It is equipped with a large, 14-inch touch screen with a high resolution of 1920 x 1200 pixels, providing a clear and convenient view of waveforms. Micsig MDO2504

4 weeks
On request
Kamami is the official distributor of Micsig oscilloscopes and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The MDO2504 is a 4-channel fifth-generation digital oscilloscope offering a bandwidth of 250 MHz and a sampling rate up to 3 GSa/s. It features a built-in memory of 360 Mpts. Equipped with a 14-inch touch screen with a resolution of 1920 x 1200 pixels, it provides clear signal waveform display. It has a very slim design (3.58 cm thick) and supports VESA mounting, significantly saving desk space.


The oscilloscope uses the dedicated SigTestUI™ operating system, developed over 10 years of user interface design experience. This makes it extremely easy to use, even for beginner engineers who can learn to operate it in just 5 minutes. Thanks to the original Mic-OPI™ probe interface, the oscilloscope automatically identifies passive probe attenuation and enables simultaneous calibration. It comes standard with a BNC adapter and also features USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger Out ports, and more.

The oscilloscope noise level is less than 90 μVrms at full 500 MHz bandwidth, allowing engineers to precisely capture weak but important signals during daily debugging of circuits. The memory depth of up to 360 Mpts ensures excellent signal fidelity, and segmented memory divides the limited space into several small segments, collecting multiple trigger events into one memory area. This effectively allows multiple recordings of target signals over a long period for further analysis.


Hardware filtering allows selective passing or blocking of signal components within a specified frequency range, which is very useful for analyzing specific frequency bands or observing changes in particular frequency components. Besides standard passive probes, the oscilloscope supports connection with all Micsig probes: isolated optical probes, high-voltage differential probes, and AC/DC current probes, maximizing the performance of both the probe and the oscilloscope.

Features

  • Bandwidth: 250 MHz
  • Rise time: 1.4 ns
  • Analog channels: 4
  • Real-time sampling rate: 3 GSa/s
  • Memory depth: 360 Mpts
  • Max waveform capture rate: 230,000 wfms/s
  • Noise: <90 μVrms
  • Vertical resolution: 8 bit
  • Trigger types: edge, pulse width, logic, N edge, pulse, slope, timeout, serial bus
  • Bus decoding: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B
  • Interfaces: USB 3.0 Host, USB Type-C, HDMI, trigger output
  • Display: 14-inch touchscreen, 1920 x 1200 pixels
  • Mobile app, remote PC control, SCPI commands
  • 32 GB internal memory
  • VESA mount
  • Power supply: 100 to 240V AC, 50/60Hz
  • Dimensions: 400 x 280 x 35.8 mm
  • Weight: 4.3 kg

Kit contains

  • Oscilloscope
  • 4 x Passive probe
  • 4 x MSP-BNC adapter
  • Power supply
  • Power cord
1190096

Data sheet

Type of oscilloscope
Digital
Bandwidth
250 MHz
Sampling rate
3 GSa/s
Memory depth
360 Mpts
Number of channels
4
