Development board with WiFi and Bluetooth ESP32 module. It is equipped with an IPS 1.14" LCD display, a USB-UART converter and a Li-Ion battery charging system. modESPttgo1.14"-16MB

4 weeks
Awaiting delivery

Description

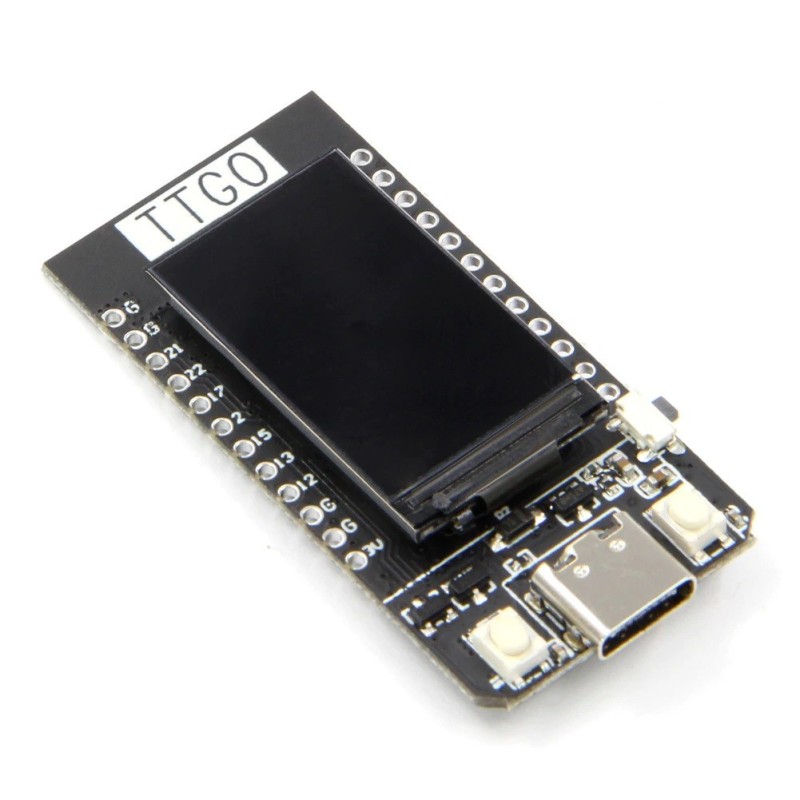

Development board with WiFi and Bluetooth ESP32 module, which has 16 MB Flash memory and 520 KB SRAM memory. Provides WiFi (802.11 b/g/n) and Bluetooth (Bluetooth v4.2 BR/EDR and BLE) connectivity. It is equipped with a 1.14" IPS LCD display, a USB-UART converter and a Li-Ion battery charging system with a connector. ESP32 pins are led out to goldpin connectors with a pitch of 2.54 mm. The module is powered and programmed via a USB type C connector It will be used in IoT projects and in projects of "wearable" devices.

Features

  • Equipped with the ESP32 WiFi module by Espressif
    • Working frequency: 240 MHz
    • Built-in 520 KB SRAM
    • Built-in WiFi 802.11 b/g/n
    • Built-in Bluetooth module (classic and BLE)
    • 16 MB FLASH memory
    • Built-in antenna
    • Hall sensor
    • Support for touch buttons (max 10)
    • 32kHz crystal oscillator
    • 3 UART (2 configured by default, 1 for debugging)
    • 3 SPI (one configured by default)
    • 12 ADC inputs
    • 2 I2S Audio
    • 2 DACs
    • Each GPIO pin has the ability to generate a PWM signal
  • IPS LCD 1.14", ST7789V
  • 500 mA lithium battery charging circuit
  • Battery connector
  • USB-UART converter
  • Power supply: USB type C connector, 5V/1A
  • Current consumption: 60 mA
  • Dimensions: 51.52 x 25.04 x 8.54 mm

Kit contains

  • TTGO ESP32 module with 1.14" display
  • 2 x straight goldpin 12-pin connector
  • Cable with connector for the battery
