Development kit based on the NVIDIA Jetson Nano platform featuring a Quad-core ARM Cortex-A57 1.43 GHz processor, 128-core Maxwell GPU, and 4 GB LPDDR4 memory, designed for AI and embedded system projects. The kit includes a module with 16 GB eMMC storage, a 64 GB microSD card, cooling system, and accessories for quick setup. Waveshare JETSON-NANO-DEV-KIT-A-EU

24h
Available
Available quantity: 5
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The JETSON-NANO-DEV-KIT-A-EU is a complete development kit based on the NVIDIA Jetson Nano module, featuring a Quad-core ARM Cortex-A57 1.43 GHz CPU, 128-core Maxwell GPU, and 4 GB LPDDR4 memory, designed for developing and testing artificial intelligence applications and embedded systems.

The kit includes all essential components required to get started, such as the compute module with eMMC storage, a microSD card, cooling system, and accessories, enabling fast setup and immediate development without the need for additional hardware.

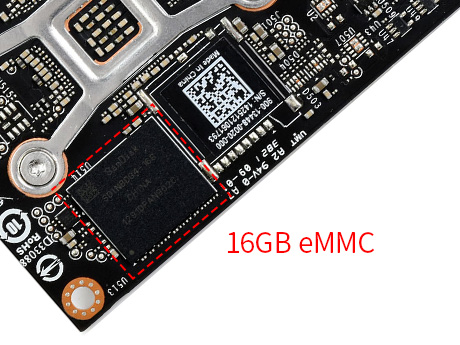

                                                                                                                                Memory System (TF / eMMC)

Memory System (TF / eMMC)

The kit is equipped with a Jetson Nano module featuring 16 GB of onboard eMMC storage, which serves as a stable system drive and allows installation of the operating system and development environments. eMMC memory provides higher reliability and better resistance to write errors compared to standard memory cards.

Additionally, the kit includes a 64 GB microSD (TF) card, which can be used as storage expansion or an additional data medium for projects requiring more space. The board also features a TF card slot, allowing flexible memory management depending on user needs.

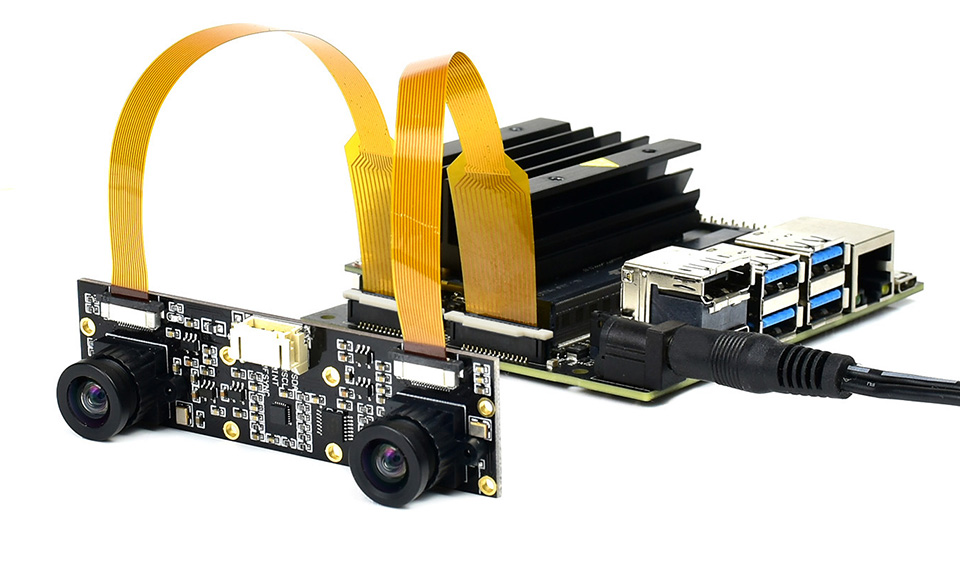

                                   Camera Support and Stereo Vision

The board supports cameras via the MIPI CSI (2-lane) interface, enabling integration of vision systems in AI projects. It allows connection of both single and dual-camera setups, supporting functions such as image analysis, facial recognition, motion detection, and real-time image processing.

Support for stereo configurations enables implementation of depth measurement algorithms, spatial analysis, and applications in VR and robotics. The solution is also suitable for autonomous systems and machine vision applications.

Camera Support and Stereo Vision

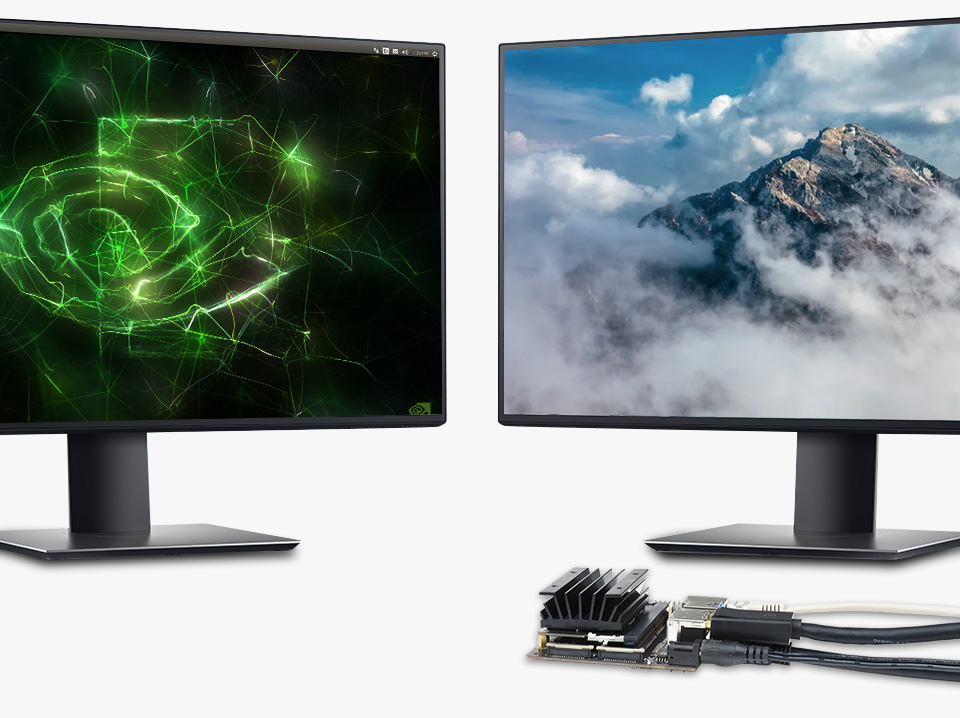

                                                                                                                         Video Outputs 4K – HDMI + DisplayPort

Video Outputs – HDMI + DisplayPort

The kit features two video output interfaces: HDMI and DisplayPort, supporting resolutions up to 4K, allowing flexible connection to various displays and monitors. Both interfaces increase compatibility with professional development setups and laboratory equipment.

These outputs support advanced graphical environments, data visualization, and GPU-accelerated applications where smooth rendering and display quality are essential. This enables convenient debugging, real-time analysis, and presentation of AI system performance.

HDMI and DisplayPort outputs also allow integration with multi-display systems and use in testing or industrial environments where stable and reliable video output is required.

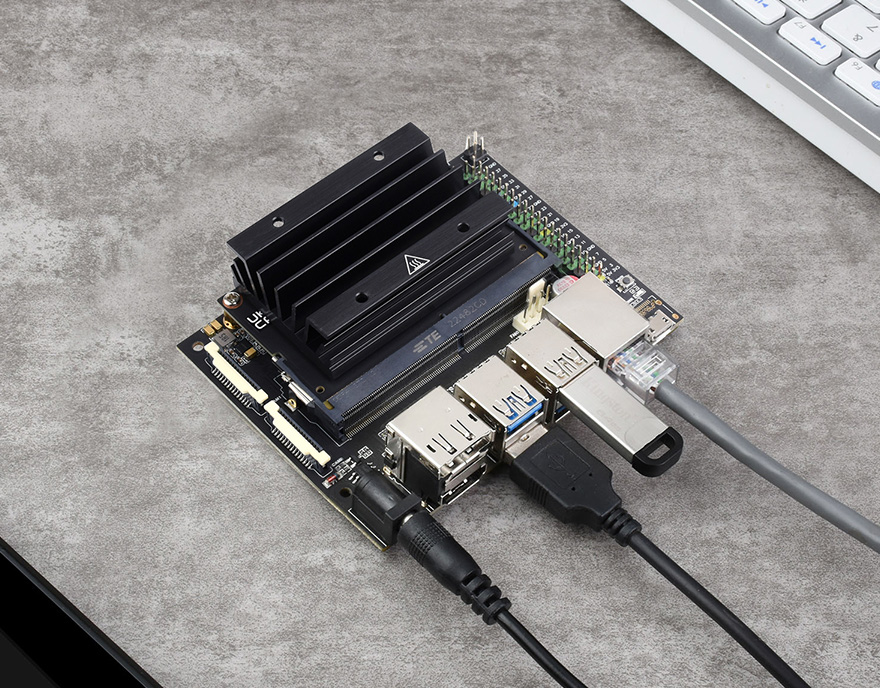

                               4× USB 3.0 – High-Speed Data Transfer

Four USB 3.0 ports provide high data throughput, which is essential in applications requiring fast data exchange. The interface allows multiple devices to be connected simultaneously without noticeable performance degradation.

The USB ports can be used to connect USB cameras, external storage devices, network adapters, and communication interfaces, enabling the creation of complex system setups.

High transfer speeds allow efficient handling of large data streams, especially in applications involving image processing and real-time data acquisition.

4× USB 3.0 – High-Speed Data Transfer

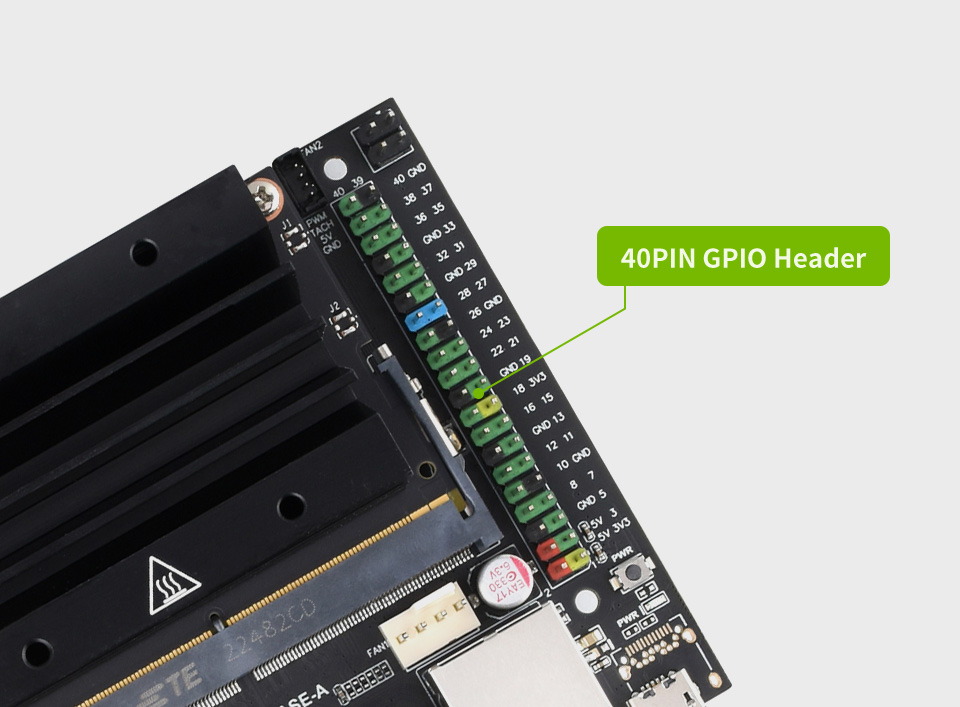

                                                                                                                         40-pin GPIO – Hardware Integration

40-pin GPIO – Hardware Integration

The 40-pin GPIO header enables direct integration with electronic circuits and expansion modules. The pins are clearly labeled, simplifying connections and prototyping.

Supported interfaces such as I2C, SPI, UART, and I2S allow communication with a wide range of sensors, displays, and communication modules. The header can be used in both simple prototypes and more advanced control systems.

Thanks to the standard pin spacing and compatibility with popular accessories, rapid implementation is possible without the need to design custom expansion boards.

The JETSON-NANO-DEV-KIT-A-EU is a powerful and flexible development platform for AI applications, offering high computing performance, stable memory, and a wide range of interfaces for advanced project development.

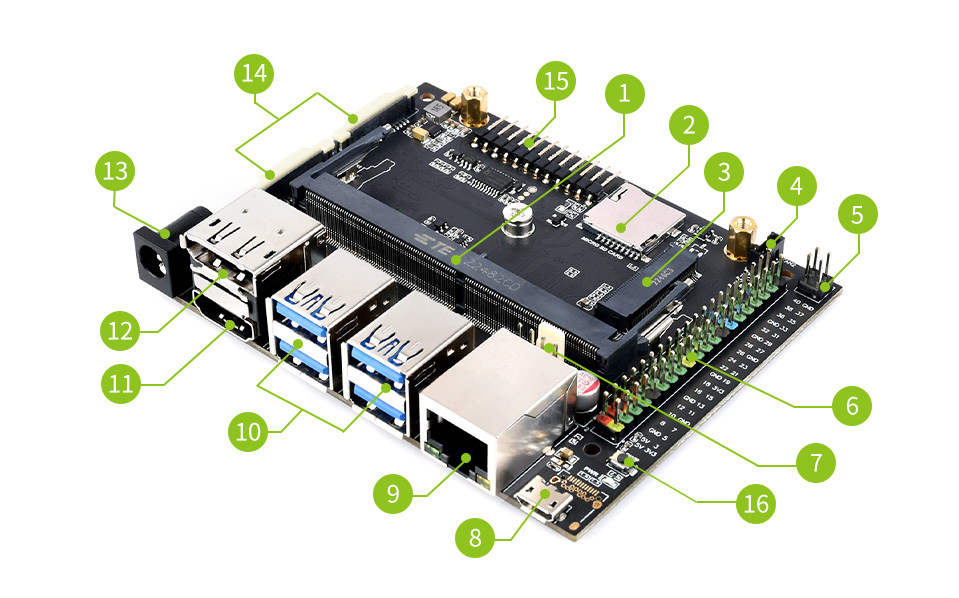

  1. Core module socket
  2. TF card slot
  3. M.2 Key E connector
  4. 1.25 mm fan header
  5. PoE pins: PoE module not included
  6. 40PIN GPIO header
  7. 2.54 mm fan header
  8. Micro USB port: for 5 V power input or USB data transmission
  9. Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation, supports PoE with external PoE module
  10. 4x USB 3.0 ports
  11. HDMI output port
  12. DisplayPort connector
  13. DC jack: for 5 V power input
  14. 2x MIPI CSI camera connectors
  15. 12PIN multi-function header
  16. PWR button: power ON/OFF control (same function as PWR BTN pin)

Features

  • Platform and Performance
    • CPU: Quad-core ARM Cortex-A57 @ 1.43 GHz
    • GPU: 128-core Maxwell
    • RAM: 4 GB LPDDR4
  • Memory
    • eMMC storage: 16 GB
    • microSD (TF) card: 64 GB (included)
    • TF (microSD) card slot
  • Interfaces and Connectivity
    • 4× USB 3.0
    • micro-USB (power / communication)
    • Gigabit Ethernet
    • M.2 Key E (WiFi / Bluetooth)
  • Video and Multimedia
    • HDMI
    • DisplayPort
    • Up to 4K resolution support
  • Camera and Expansion
    • 2× MIPI CSI
    • 40-pin GPIO
    • I2C, SPI, UART, I2S
  • Power Supply
    • 5 V (micro-USB or DC jack)

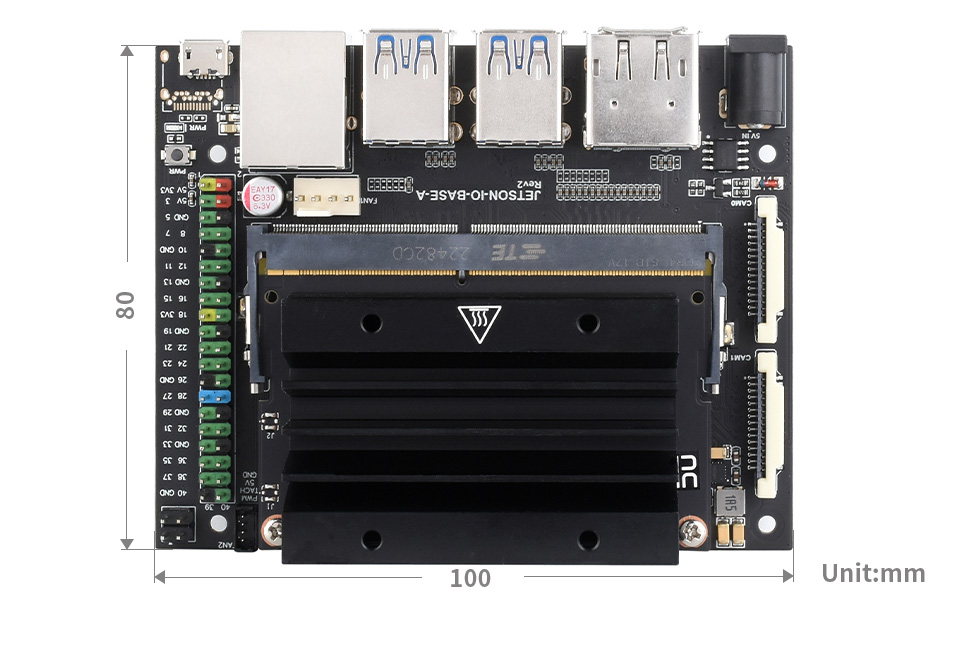

  • Dimensions
    • 100 × 80 × 29 mm

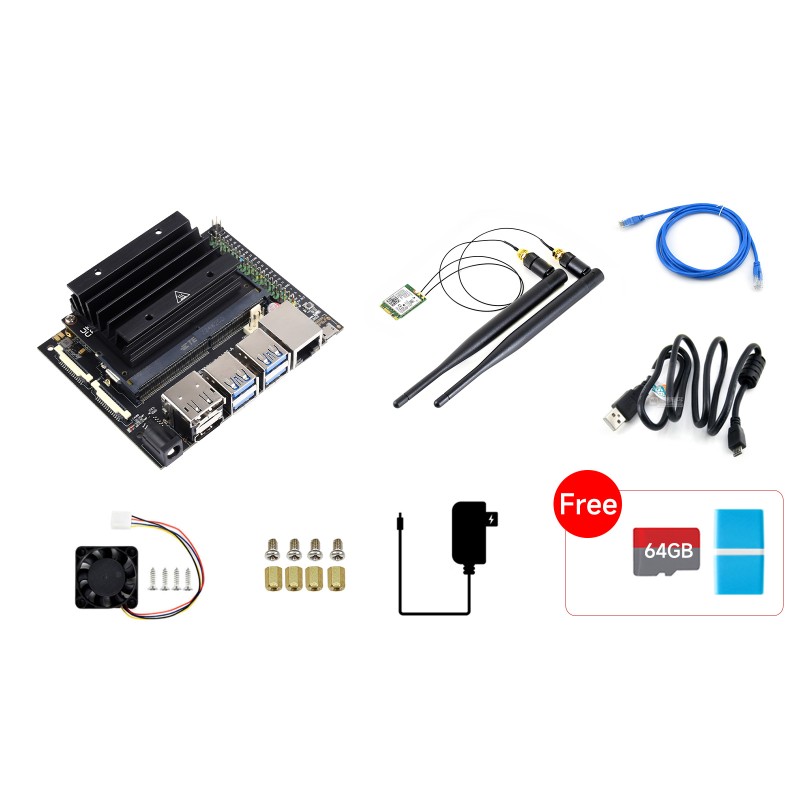

Kit includes

  • Carrier board
  • NVIDIA Jetson Nano module (16 GB eMMC)
  • 64 GB microSD (TF) card
  • Card reader
  • Cooling fan
  • USB cable
  • Ethernet cable (~1.5 m)
  • WiFi antennas
  • Mounting accessories (screws, standoffs)
  • 5V 4A power supply (EU version)
