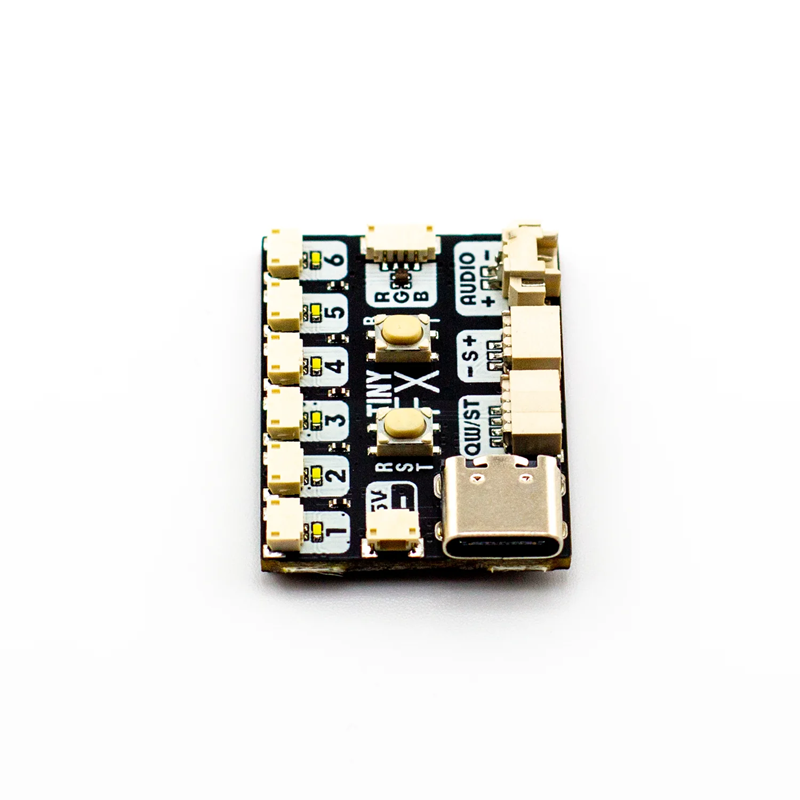

Main view
search
  • Main view
  • Top view
  • Bottom view
ID: 1198996
zł141.62
Tax included

zł115.14 tax excl.

A compact, wireless light and sound effects controller based on the RP2040 microcontroller with a Raspberry Pi RM2 Wi-Fi and Bluetooth module. It allows you to control mono and RGB LEDs, create lighting animations, and play sound effects thanks to the built-in I2S audio amplifier. It supports sensors and modules via Qw/ST and JST-SH connectors, and effects can be triggered by motion, sound, or remotely over the network. Pimoroni PIM728

4 weeks
Awaiting delivery
Kamami is the official distributor of Pimoroni modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Tiny FX W is a compact yet highly versatile wireless lighting and sound effects controller, designed for models, dioramas, and creative DIY projects. At its core is the RP2040 microcontroller paired with the Raspberry Pi RM2 module. The RP2040 features dual Arm Cortex-M0+ cores, enabling parallel processing of tasks such as lighting effect control and wireless communication. The integrated 4 MB QSPI Flash memory with XiP support allows fast execution of code directly from flash, reducing system response time and improving overall performance. The onboard RM2 module provides stable Wi-Fi 2.4 GHz and Bluetooth connectivity, enabling integration with mobile applications, online services, and remote control of effects. Thanks to a rich set of interfaces—including LED outputs, an I2S audio amplifier, and Qw/ST and JST-SH connectors—the controller works seamlessly with a wide range of sensors, modules, and accessories without the need for additional circuitry.


The controller enables brightness adjustment, creation of dynamic lighting animations, motion simulation, and ambient light pulsing effects. You can also trigger effects in response to motion, sound, or other environmental events. The integrated audio amplifier allows you to add sound effects that perfectly complement the lighting. The device is designed as a plug-and-play solution. Thanks to its compact PCB size, it can be easily hidden inside models, layouts, or decorative elements. Tiny FX W is ideal for dioramas, dollhouses, and decorative installations. It is the perfect choice for creators who want to combine light, sound, and wireless control in a single project.

Features

  • Microcontroller: RP2040 (Dual Arm Cortex-M0+, up to 133 MHz)
  • Memory: 4 MB QSPI Flash (XiP)
  • Wireless connectivity: Wi-Fi 2.4 GHz and Bluetooth (RM2 module)
  • 6 × mono LED outputs (2-pin JST-SUR) with status LEDs
  • 1 × RGB LED output (4-pin JST-SUR) with RGB status LED
  • Integrated I2S audio amplifier, 3.2 W (mono)
  • Qw/ST connector (Qwiic / STEMMA QT) for sensors and modules
  • 3-pin JST-SH connector for analog and digital sensors
  • Power supply: USB-C or external 2-pin JST-SUR (up to 1 A)
  • Reset and BOOT buttons (BOOT also functions as a user button)
  • Programming: MicroPython
  • Board dimensions: 31.2 × 23.2 × 6.7 mm
