zł54.84 tax excl.

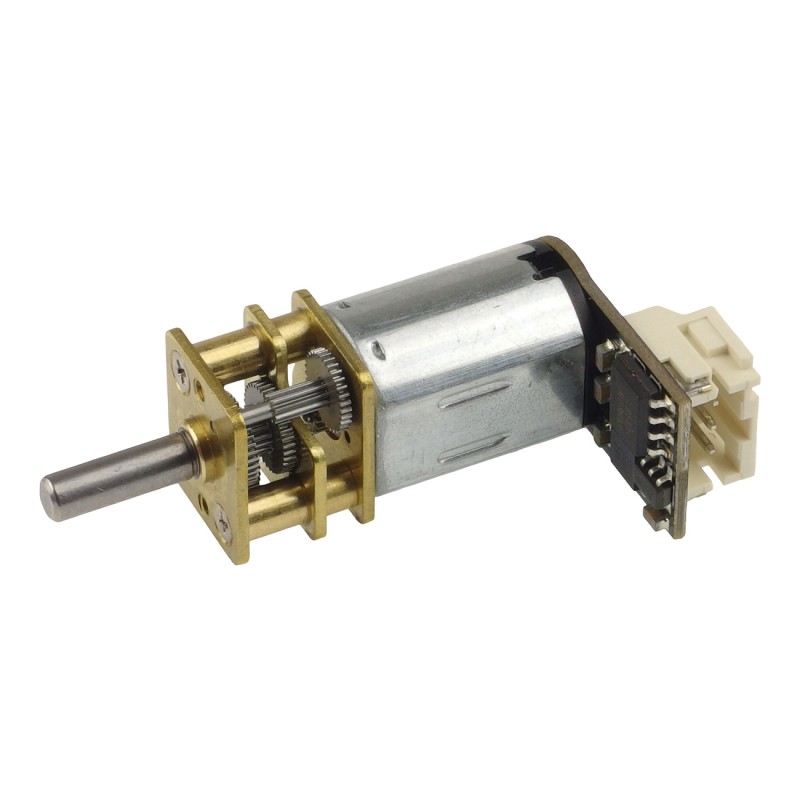

DC Micro motor module with metal gear with a gear ratio of 50:1. The motor is connected to the board containing the driver. DFRobot DFR0429
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
DC Micro motor module with metal gear with a gear ratio of 50:1. The motor is connected to the board containing the driver, so the motor can be controlled via the Gravity connector directly by the microcontroller (no additional H-bridge required). The set is controlled by the PWM signal, analogically to the servo. The module is characterized by low current consumption (less than 1 mA in the absence of a control signal). The user manual with a sample program is available on the product Wiki page.
Features
- Metal gear 50:1
- No-load current: 40mA @ 6V
- Static current: <1mA (no PWM control signal input)
- Interface: 3-pin Gravity
- Signal resolution PPM: 1 us
- PPM signal pulse width range: 500 us to 2500 us
- Clockwise rotation pulse width range: 500us-1400us (max speed 500us)
- Stop pulse width range: 1400us-1600us
- Counterclockwise Rotation Pulse Width Range: 1600us-2500us (max speed 2500us)
- PWM frequency: 500 Hz
- Voltage: 3.5V to 8V
Kit contains
- DC Micro Metal Gear Motor w/Diver - 50:1
- Gravity 3-Pin cable
Data sheet
- DC motor power
- Other
- Gear material
- Metal
- Gear ratio
- 50:1
- Rotation speed
- Inna
- Shaft diameter
- 3 mm
- Shaft shape
- D
- Obustronny wał silnika
- Nie
- Power supply voltage
- 3,5 - 8 V
