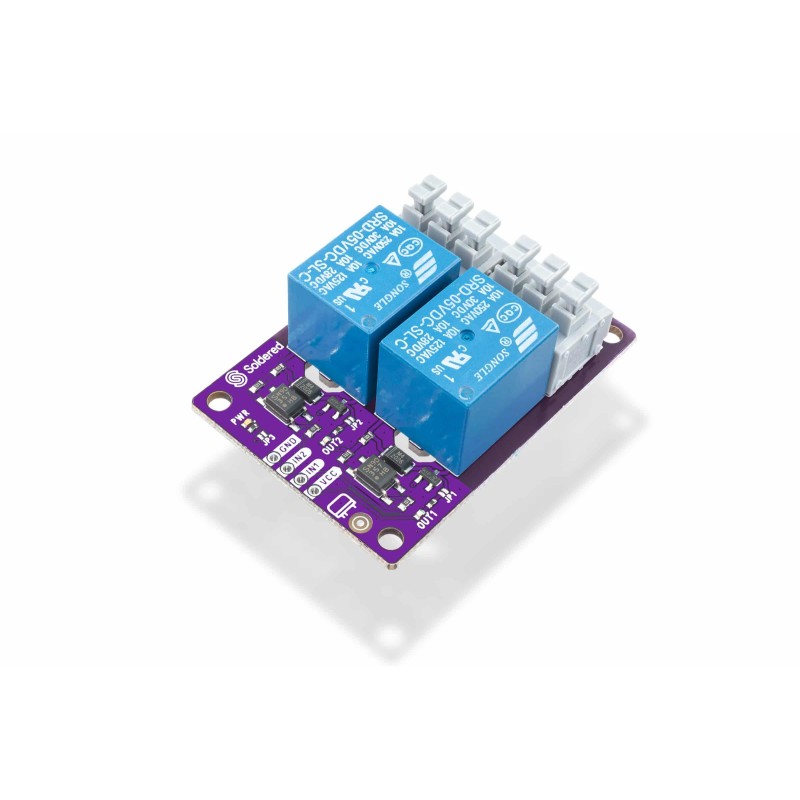

Main view
search
  • Main view
  • Main view (rotated)
  • Top view
  • Bottom view
  • Goldpin header
ID: 1208248
zł37.10
Tax included

zł30.16 tax excl.

Two-channel relay module designed for independent control of two AC or DC loads using a microcontroller. Each of the two relays supports loads of up to 10 A at 250 V AC or 10 A at 30 V DC, while the control circuit is compatible with 3.3 V and 5 V logic levels. Soldered 333023

Delivery date unknown
Out-of-Stock

Description

The board is equipped with 2 electromechanical relays for independently switching two AC or DC circuits. The maximum switching parameters for each relay are 250 V AC / 10 A or 30 V DC / 10 A. The integrated control circuit allows operation with microcontrollers using 3.3 V and 5 V logic levels, including Arduino platforms.

The 2.54 mm pin pitch allows the board to be used in prototype circuits, while two independent channels can control lighting, motors, solenoid valves, and other AC or DC loads. The mounting holes are compatible with LEGO spacing. The board measures 54 x 38 mm.

Features

  • Type: 2-channel relay module
  • Switching element: electromagnetic relays
  • Number of channels: 2
  • Number of relays: 2
  • Maximum DC switching voltage: 30 V
  • Maximum DC switching current: 10 A
  • Maximum AC switching voltage: 250 V
  • Maximum AC switching current: 10 A
  • Compatible with 3.3 V and 5 V logic levels
  • Pin pitch: 2.54 mm
  • Breadboard-compatible design
  • LEGO-compatible mounting holes
  • Dimensions: 54 x 38 mm
  • Arduino library support
  • Open-source design
  • Manufactured in Croatia, EU

Kit includes

  • Soldered 2-Channel Relay Board - 1 pc.
  • Pin header - 1 pc.
1208248

Data sheet

Output current
10A
Number of channels
2
Executive element
Przekaźnik elektromagnetyczny
Coil voltage
30 VDC / 250 VAC
