Advanced 60 GHz radar, capable of detecting human presence, falls, posture and vital signs such as heart rate and breathing – even when motionless. Ceiling-mounted and compatible with platforms such as Arduino or ESP32, it is ideal for healthcare systems, especially for monitoring sleep and the safety of the elderly. DFRobot SEN0623

4 weeks
Awaiting delivery
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

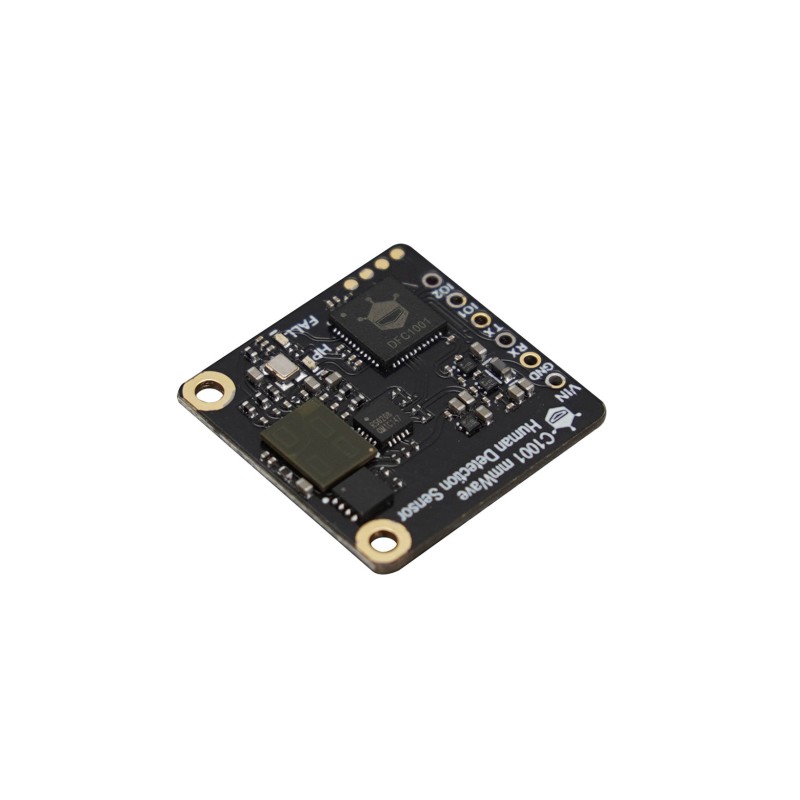

The C1001 mmWave Human Detection Sensor is a modern 60 GHz radar designed for precise human presence detection. Unlike standard 24 GHz sensors that only detect movement, speed, and distance, the C1001 model offers extended functionality: fall detection, sleep monitoring, and human posture analysis. Thanks to its point cloud imaging algorithm, the sensor can recognize if a person is lying down and monitor vital signs even when the person is motionless.


The C1001 is ideal for healthcare applications, particularly for monitoring the elderly and patients requiring care. It is compatible with platforms such as Arduino UNO, ESP32, and micro:bit, and the extensive documentation and sample code facilitate rapid deployment. The device operates reliably under diverse conditions, delivering accurate data on presence, heart rate, and breathing rhythm. When mounted on the ceiling (at a height of 2.7 m), it can detect movement within a radius of up to 11 meters. Additionally, the sensor can measure breathing and heart rate from a distance of up to 1.5 meters, providing comprehensive insights into sleep quality.

Features

  • Operating frequency: 61 – 61.5 GHz
  • Detection range: up to 11 meters (with ceiling mount)

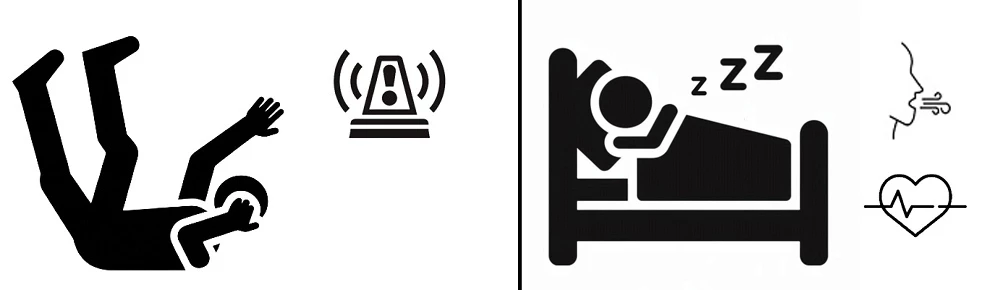

  • Functions: presence detection, fall detection, stillness detection, sleep monitoring, heart rate, and breathing detection
  • Breathing rate detection range: 10 – 25 breaths/min
  • Heart rate detection range: 60 – 100 beats/min
  • Heart rate and breathing detection distance (chest-facing): 0.4 – 1.5 m
  • Sleep monitoring range: 0.4 – 2.5 m
  • Detection angle: 100×100 degrees
  • Supply voltage: 5V DC
  • Current consumption: ≤100mA
  • Operating temperature: -20°C to 60°C
