New products

Module with three resistive touch pads designed for use with BBC micro:bit. Breaks out pins P0, P1 and P2 to large finger-operated pads and provides P0, P1, P2 and GND connections via a pre-fitted pin header. The board can be connected using jumper wires or soldered connections and programmed in Microsoft MakeCode. Kitronik 5637

Educational set for programming the Mai-Z the MouseBot without using a computer, tablet or app. Includes 53 colour-coded instruction blocks, a Screen-Free PCB, a double-sided townscape poster and a 16-page instruction booklet with sample activities. Programming involves arranging a sequence of blocks, recording it with the robot and then executing the commands. Kitronik 56139

Floor tile set for the Mai-Z the MouseBot robot, designed for creating routes, intersections and destination points during programming activities. Includes 24 location tiles, 48 road tiles, destination cards and a Gratnells storage tray with lid. Enables navigation challenges and programming exercises for a robot based on BBC micro:bit. Kitronik 56136

Educational soldering kit for building an electronic reaction game controlled by an STM32C0 microcontroller. The player must stop the moving light on the green LED, while the switching speed increases after each successful round. The kit is powered by an included CR2032 battery. Soldered 333138

Breakout board with the Bosch BME688 sensor for measuring temperature, relative humidity and atmospheric pressure as well as monitoring gases and indoor air quality, including VOCs. It communicates via I2C, features two Qwiic connectors and supports Arduino, MicroPython and Bosch BME AI-Studio. Soldered 333203

Programmable 5.65" color e-paper module with a 600 × 448px AC057TC1 display supporting 7 colors. Based on ESP32-WROVER with WiFi and Bluetooth, it includes microSD, RTC, USB-C, easyC / Qwiic and a 3.7V 1200mAh Li-Ion battery with a 3D-printed enclosure. Soldered 333231

Set consisting of a 28BYJ-48 5V stepper motor and a compatible driver board for positioning and motion-control projects. The motor provides 2048 steps per revolution, while the driver supports 3.3V and 5V logic. Soldered 333250

Charger module for single-cell Li-Ion and Li-Pol batteries, based on the BQ24295 IC. It supports CC/CV charging at up to 3 A, an input voltage range from 4.35 V to 17 V and power path management, allowing simultaneous battery charging and powering of the connected device. Soldered 333075

Programmable 6-inch e-paper display with a resolution of 1024 x 758 px, supporting 16 grayscale levels and fast partial refresh in 91 ms, corresponding to up to 11 FPS. The board uses an STM32H743ZIT6 microcontroller and ESP32-C3 coprocessor, providing WiFi, Bluetooth, integrated sensors, a microSD slot, USB-C, and more than 30 GPIO lines. Soldered 333321

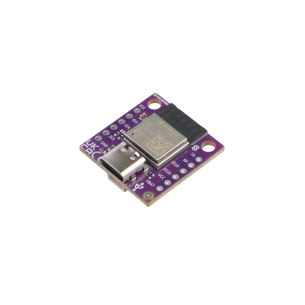

Compact development board based on the ESP32-C6-MINI-1-N4 module, equipped with male pin headers and supporting WiFi 6, Bluetooth 5.3 LE, Thread, and Zigbee protocols. It provides 4 MB of Flash memory, 512 KB of SRAM, 6 GPIO lines, a Qwiic/STEMMA QT connector, and support for a 3.7 V Li-ion battery, with dimensions of 25.33 x 25.33 mm. Soldered 333368

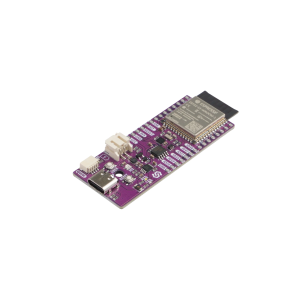

Energy-efficient development board based on the ESP32-S3-WROOM-1-N8R8 module, equipped with male pin headers and designed for IoT devices, data loggers, and battery-powered systems. It provides 8 MB of Flash memory, 8 MB of PSRAM, WiFi, Bluetooth LE, a PCF85063A RTC, and a Li-ion/Li-Po battery charger, while Deep Sleep current consumption is only 7 µA. Soldered 333369

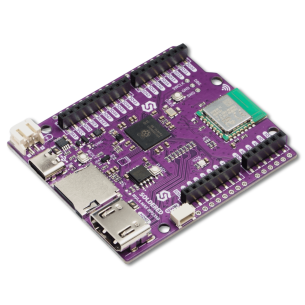

Advanced development board based on the RP2350B microcontroller, equipped with male pin headers and designed for projects requiring a large number of GPIO lines, wireless connectivity, and display support. It provides 520 KB of SRAM, 16 MB of Flash memory, WiFi and Bluetooth via Raspberry Pi Radio Module 2, DVI output, a microSD slot, Qwiic, and a 3.7 V Li-ion battery charging circuit. Soldered 333370

Compact development board based on the ATmega328P microcontroller, compatible with the Arduino ecosystem and designed for learning electronics, prototyping, and projects involving sensors, communication modules, and actuators. The version with male pin headers provides 22 board I/O pins, a USB-C connector, Qwiic, a Li-ion battery charger, and a WS2812 RGB LED. Soldered 333386

Compact development board based on the ATmega328P microcontroller, compatible with the Arduino ecosystem and designed for learning electronics, prototyping, and projects involving sensors, communication modules, and actuators. The version with female pin headers provides 22 board I/O pins, a USB-C connector, Qwiic, a Li-ion battery charger, and a WS2812 RGB LED. Soldered 333387

ESP32-S3-based module designed to read data from USB HID devices and forward it to a microcontroller via I2C, UART or SPI. It enables a USB keyboard, mouse or MIDI controller to be connected without implementing a USB Host stack on the Arduino or ESP32 side. The USB-A port is powered by an onboard boost converter that raises the voltage from 3.3 V to 5 V, while the current available to the connected device is limited to 260 mA. Soldered 333390

Driver designed for controlling bipolar stepper motors, equipped with the DRV8825 IC and adjustable current limiting. It supports microstepping down to 1/32 step and a current of up to 1.5 A per phase without a heatsink or up to 2.2 A per phase with a heatsink. Soldered 333000

Charger module designed for Li-Ion batteries, using the CC/CV charging method. It features a USB Type-C connector for power input, a JST battery connector, a protection circuit, and LED indicators for monitoring the operating status. Soldered 333014

Adapter designed for connecting conventional I2C modules to the Qwiic bus. It provides 2 Qwiic connectors and through-hole connections for SCL, SDA, 3.3 V, and GND, allowing modules without a native Qwiic connector to be integrated into a Qwiic system. Soldered 333015

Four-channel logic level converter designed for connecting digital devices operating at different signal voltages. It uses the TXS0104 IC and supports bidirectional level conversion for I2C bus signals. Soldered 333016

Four-channel logic level converter based on the TXB0104 IC, designed for connecting digital circuits operating at different logic voltages. It supports automatic direction sensing, bidirectional communication, and digital interfaces such as SPI and UART. Soldered 333017
