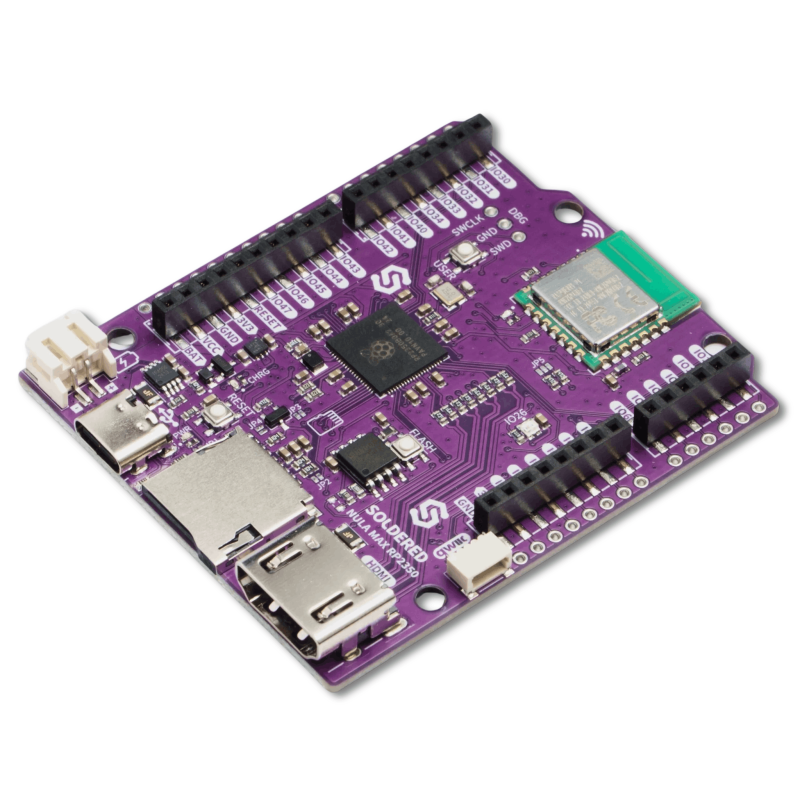

Main view
search
  • Main view
  • Top view
ID: 1208363
zł110.87
Tax included

zł90.14 tax excl.

Advanced development board based on the RP2350B microcontroller, equipped with male pin headers and designed for projects requiring a large number of GPIO lines, wireless connectivity, and display support. It provides 520 KB of SRAM, 16 MB of Flash memory, WiFi and Bluetooth via Raspberry Pi Radio Module 2, DVI output, a microSD slot, Qwiic, and a 3.7 V Li-ion battery charging circuit. Soldered 333370

24h
Available
Available quantity: 3

Description

The RP2350B microcontroller in an 80-pin package provides two Arm Cortex-M33 cores operating at up to 150 MHz, 520 KB of SRAM, and 8 KB of OTP memory. The board also features 16 MB of external Flash memory and provides between 30 and 48 GPIO lines, depending on the configuration and functions in use. The GPIO pins operate at a 3.3 V logic level and are not 5 V tolerant. A 12-bit ADC with a 0 V to 3.3 V input range and programmable I/O (PIO) blocks are also available.

Raspberry Pi Radio Module 2 provides WiFi and Bluetooth connectivity, while the DVI output enables direct display support using PicoDVI. The board also includes a microSD slot, Qwiic connector, USB-C for programming, power, and serial communication, as well as a JST connector with a charging circuit for a 3.7 V Li-ion battery. User controls include RESET, BOOTSEL, and USER buttons, along with an addressable WS2812 RGB LED. The board can be programmed using Arduino IDE, MicroPython, C++, and Rust. The pin layout is not 1:1 compatible with Arduino UNO shields.

Features

  • Microcontroller: RP2350B
  • Microcontroller package: 80-pin
  • Cores: 2 x Arm Cortex-M33
  • RISC-V core support: 2 x RISC-V
  • Maximum clock frequency: 150 MHz
  • SRAM: 520 KB
  • OTP memory: 8 KB
  • External Flash memory: 16 MB
  • Flash memory IC: W25Q128JVSIM
  • GPIO count: 30 to 48, depending on configuration
  • GPIO logic level: 3.3 V
  • 5 V tolerant GPIO: no
  • ADC resolution: 12-bit
  • ADC range: 0-3.3 V
  • Programmable I/O: PIO
  • Wireless connectivity: WiFi / Bluetooth
  • Wireless communication module: Raspberry Pi Radio Module 2
  • Video output: DVI / PicoDVI
  • Memory card slot: microSD
  • Expansion connector: Qwiic
  • USB connector: USB-C
  • USB-C functions: programming / power / serial communication
  • Battery support: 3.7 V Li-ion
  • Battery connector: JST
  • Integrated battery charging circuit
  • External crystal: 12 MHz
  • RGB LED: WS2812
  • Buttons: RESET / BOOTSEL / USER
  • Development environments and languages: Arduino IDE / MicroPython / C++ / Rust
  • Header version: male pin headers
  • Pin pitch: 2.54 mm
  • Open-source hardware design
  • Manufactured in Croatia, EU

Kit includes

  • Soldered NULA Max RP2350 board with male pin headers - 1 pc.
  • USB-C to USB-C cable - 1 pc.
1208363

Data sheet

Microcontroller
RP2350B
Flash memory
16 MB
Number of I/O
48
Ethernet
none
WiFi/BT module
Yes
Bluetooth module
Yes
MicroSD slot
Yes
Length
69 mm
Width
58,5 mm
USB connector type
USB type C
