modMPU9250 (GY-9250) - 9DoF module with MPU-9250 chip - accelerometer, magnetometer, gyroscope
ID: 557794
5906623454754
zł35.17
Tax included
zł28.59 tax excl.

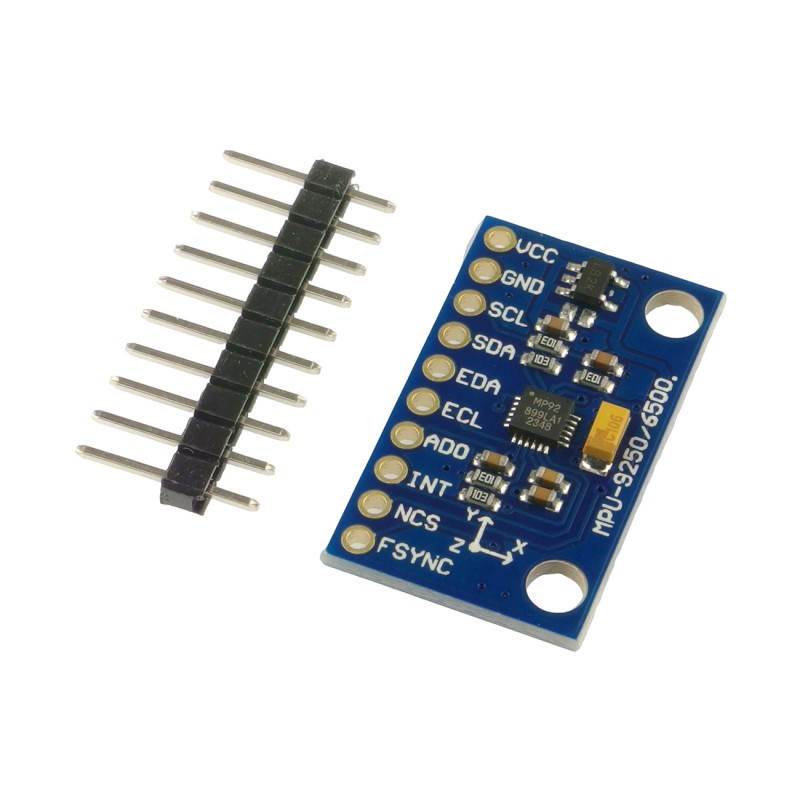

GY-9250 is a 9 Degrees of Freedom (9DoF) module with the InvenSense MPU-9250 chip. It has a built-in gyroscope, accelerometer and magnetometer.
The 9DoF module allows 9-axis measurement (3 axes of accelerometer, 3 magnetometer axes, 3 gyroscope axes).
Communication with the MPU-9250 system takes place via SPI or I2C buses.
properties
- Module with MPU-9250 system
- Interface: I2C / SPI
- Gyroscope working range: +/- 250, +/- 500, +/- 1000, +/- 2000 dps
- Range of work of the accelerometer: +/- 2G, +/- 4G, +/- 8G, +/- 16G
- Magnetometer working range: +/- 4800
- The set includes a straight pin connector with a 2.54 mm pitch
- Supply voltage 3-5 V DC
- Dimensions: 15 x 25 mm
To download
557794
Data sheet
- Interface
- SPI/I2C
- Power supply voltage
- 3 - 5 V
- Sensor type
- Akcelerometr, żyroskop i magnetometr
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
