USB2.0 HDR Camera - PS5268 2MP USB Camera - Waveshare 33897
ID: 1204589
zł448.58
Tax included
zł364.70 tax excl.

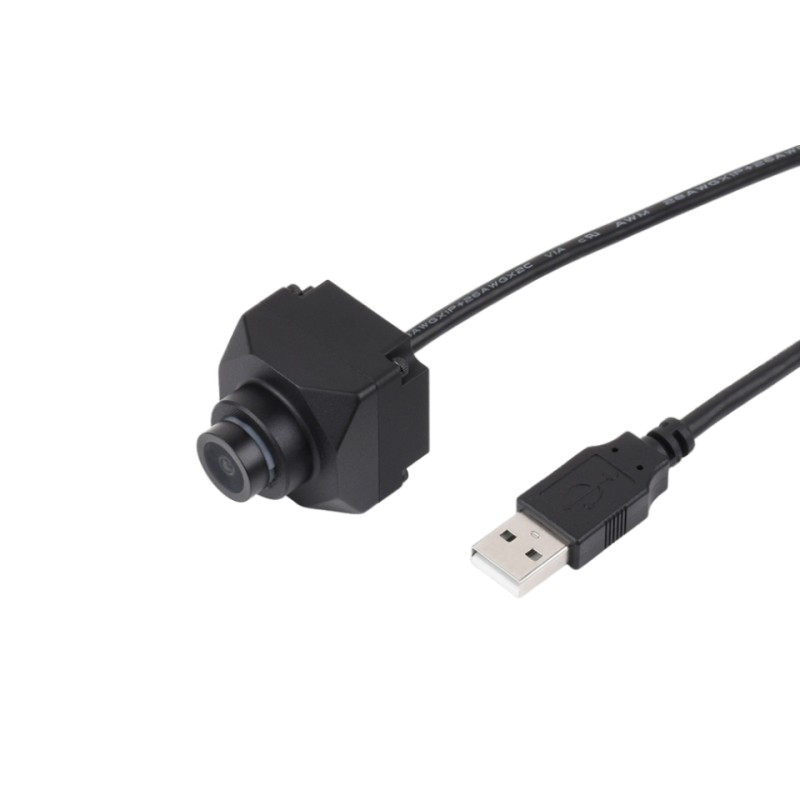

2 MP camera module with PS5268 image sensor, USB 2.0 interface and 120 dB high dynamic range, designed for vision systems and industrial applications. Waveshare PS5268-2MP-USB-Camera-A
Description
Camera module based on the PS5268 image sensor with a resolution of 2 MP, equipped with a USB 2.0 interface for direct connection to computers or embedded systems. The Plug and Play design eliminates the need for additional drivers, simplifying integration in applications requiring quick deployment.
The CMOS sensor and MJPG format support enable image capture at resolutions up to 1920 x 1080 at 30 fps. A dynamic range of up to 120 dB allows capturing detailed images in both bright and low-light environments. The fixed-focus lens provides a wide field of view, making the module suitable for surveillance systems, robotics and industrial applications.
The enclosure with increased environmental resistance allows operation in outdoor and industrial conditions. The module is used in machine vision systems, automation, robotic projects and security applications.
Features
- Sensor: PS5268 CMOS 2 MP
- Resolution: 1920 x 1080
- Sensor size: 1/2.4"
- Aperture: F2.0
- Focal length: 3.35 mm
- Field of view: 112.6° x 57.6°
- Focus: fixed-focus
- Shutter: rolling shutter
- Interface: USB 2.0
- Image format: MJPG
- Frame rate: up to 30 fps at 1920 x 1080
- Dynamic range: 120 dB
- Supply voltage: 5 V
- Current consumption: 90 mA
- Protection rating: IP67

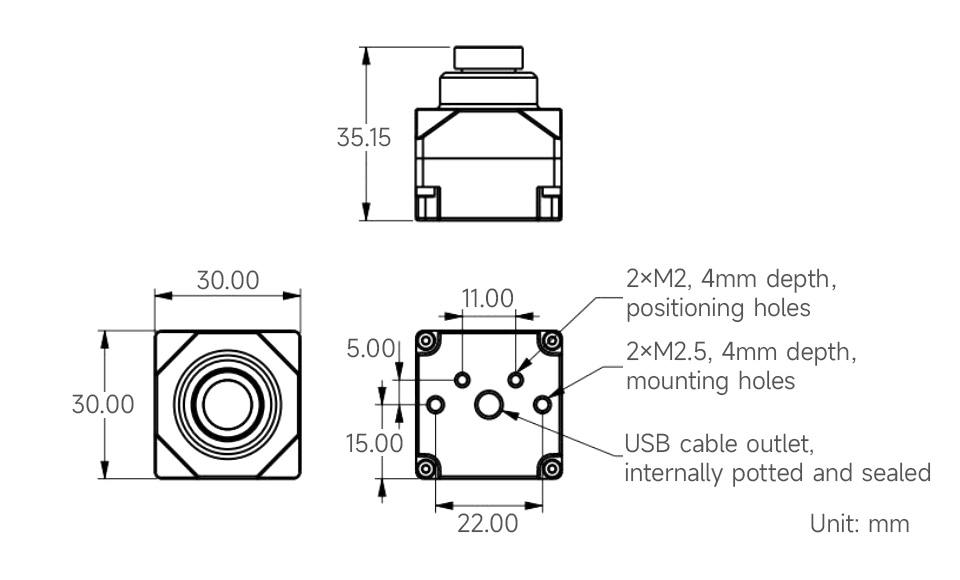

- Dimensions: 30 x 30 x 35.15 mm
- Weight: 0.134 kg
1204589
Data sheet
- Resolution
- 1920 x 1080 px
- Interface
- USB 2.0
- Sensor
- PS5268
- IR filter
- No
- Lens assembly
- none
