ESP32-S3-LCD-1.3-C is an advanced evaluation board featuring a 1.3-inch LCD screen, integrated IMU, and Wi-Fi and Bluetooth connectivity, designed for use in interactive systems and IoT devices. Thanks to its enclosure and prismatic cube, it offers an impressive graphical display. High performance, a rich set of peripherals, and compact size make the board ideal for prototyping user interfaces, wearable devices, electronic toys, and control systems.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

ESP32-S3-LCD-1.3-C is a compact evaluation board featuring the ESP32-S3R8 microcontroller, an integrated 1.3" LCD display, and a 6-axis motion sensor. It is equipped with a dual-core Xtensa® LX7 processor clocked up to 240 MHz, 2.4 GHz Wi-Fi and Bluetooth 5 LE support, 8 MB PSRAM, and 16 MB Flash. The “C” version is delivered in a plastic enclosure with a prismatic optical element that enhances the visual effect of the display. The 240×240 px screen, based on the ST7789V2 driver, communicates via SPI, offering clear visuals and efficient GPIO usage. Additionally, the board includes battery charging management, a TF card slot, and programmable GPIO headers.

Features

  • Microcontroller: ESP32-S3R8, 2× Xtensa® LX7, up to 240 MHz
  • Memory: 512 KB SRAM, 384 KB ROM, 8 MB PSRAM, 16 MB Flash
  • Connectivity: Wi-Fi 802.11 b/g/n, Bluetooth 5 (LE), ceramic antenna
  • Display: 1.3" LCD, 240×240 px, 262K colors, SPI, ST7789V2 driver
  • Panel: IPS, 160° viewing angle
  • Sensor: QMI8658 6-axis IMU (3-axis accelerometer + 3-axis gyroscope)
  • Card slot: TF slot
  • Power supply: USB Type-C port, 3.7 V MX1.25 battery connector, PL4054 charging management
  • Voltage regulator: ME6217C33M5G, 3.3 V / 800 mA
  • Interfaces: 13-pin GPIO header, 2.54 mm pitch
  • Hardware support for 90° display rotation

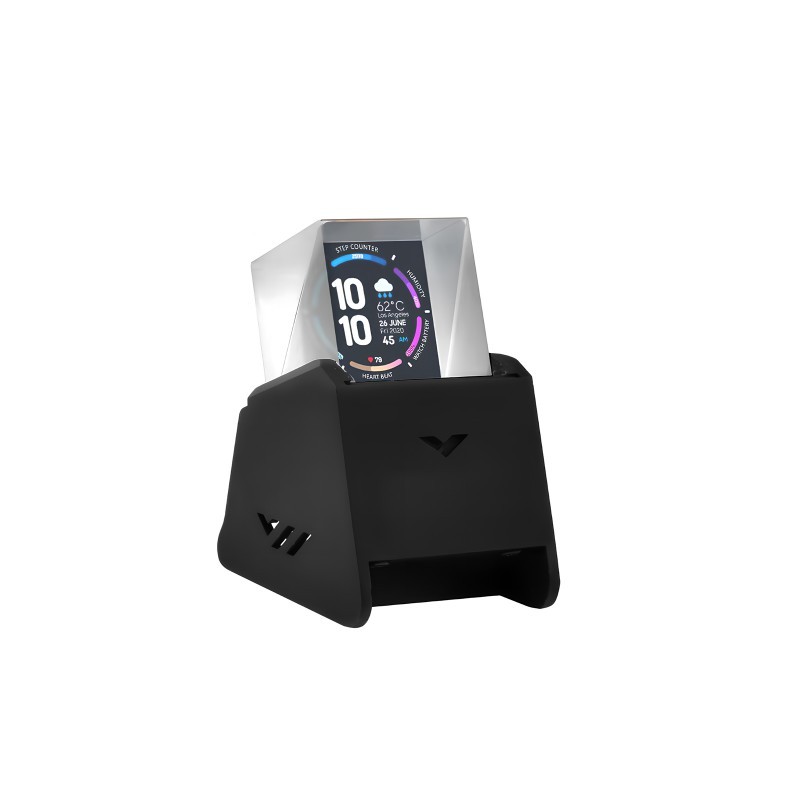

  • Version with plastic enclosure and prismatic display cube

Included in the set

  • ESP32-S3-LCD-1.3-C board
  • Prismatic cube
