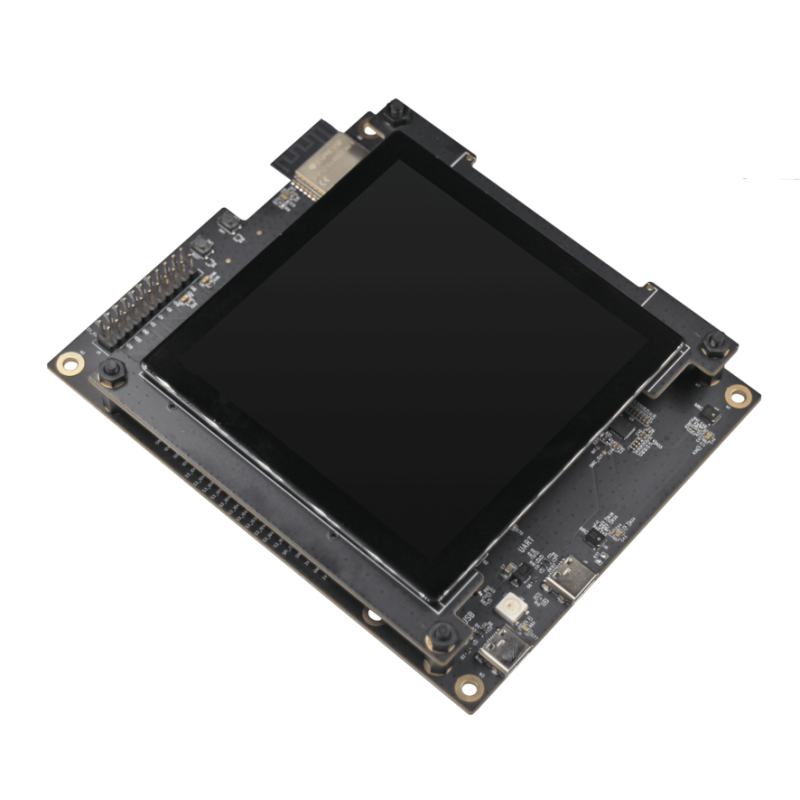

ESP32-S3-LCD-EV-Board - development board with ESP32-S3-WROOM-1 module and LCD display
ID: 1206211
5902186339514
zł319.91
Tax included
zł260.09 tax excl.
A development platform based on the ESP32-S3 module, designed for projects requiring a graphical interface and voice control. Equipped with a 480x480 touchscreen display, dual microphones, and audio circuitry, it enables the creation of modern multimedia applications and AIoT systems. With 16MB of Flash, 16MB of PSRAM, and support for multiple LCD interfaces, it provides high performance and extensive design flexibility. Espressif Systems ESP32-S3-LCD-EV-Board
Description
ESP32-S3-LCD-EV-Board v1.5 is an advanced development board designed for projects requiring visual and voice interaction. The device is based on the powerful ESP32-S3-WROOM-1 module, which provides high computational performance and support for AIoT (Artificial Intelligence of Things) applications. The integrated 480×480 touch display enables the creation of modern user interfaces. With support for multiple LCD interfaces such as RGB, SPI, I2C, and 8080, the platform offers great design flexibility. The board is equipped with a dual-microphone setup, enabling speech recognition and voice command detection in both near-field and far-field scenarios.
The advanced audio subsystem includes an audio codec and amplifier, allowing multimedia applications without the need for additional modules. Thanks to neural network acceleration, the device is well-suited for applications such as smart control panels, smart home systems, and HMI interfaces. The board supports communication via USB and UART interfaces, significantly simplifying programming and debugging. An integrated USB-UART converter ensures stable communication with a computer. The module also offers extensive expansion capabilities through expansion connectors and a GPIO expander, increasing the number of available I/O lines. Support for various LCD subboards allows adaptation to specific project requirements. The board design enables easy integration with additional components and rapid prototyping. ESP32-S3-LCD-EV-Board is an ideal solution for engineers and hobbyists developing modern devices with touch interfaces and voice control.

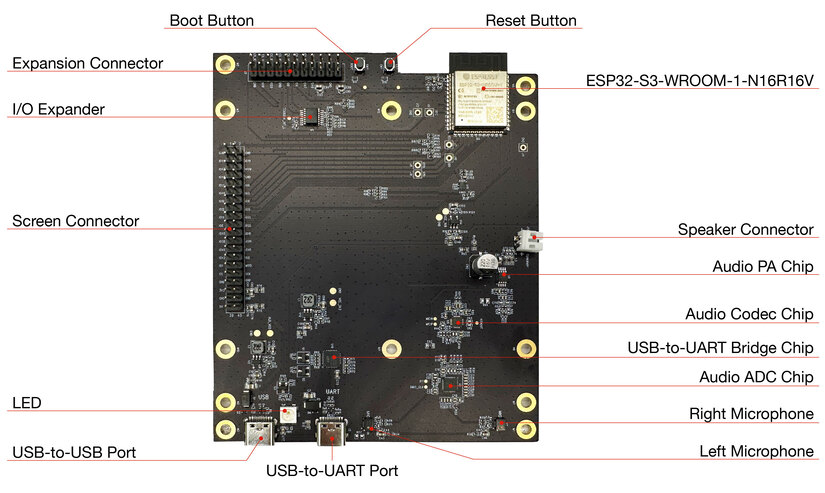

Features
- Module: ESP32-S3-WROOM-1-N16R16V (16 MB Flash, 16 MB PSRAM)
- Display: 3.95" TFT LCD, resolution 480 × 480 (RGB565, GC9503CV controller, FT5x06 touch)
- Supported display interfaces: RGB, 8080, SPI, I2C
- Dual-microphone audio system (left and right microphone)
- Audio ADC: ES7210 (4-channel, AEC support)
- Audio codec: ES8311 (ADC, DAC, amplifier, audio effects)
- Audio amplifier: NS4150, 3 W, Class D
- Speaker connector for audio output
- GPIO expander: TCA9554 (8-bit, I2C)
- USB-UART bridge: CP2102N (up to 3 Mbps)
- USB port (USB-to-USB): power and communication
- USB-UART port: power, programming, and debugging
- Buttons: Reset and Boot (programming mode)
- Expansion connector for GPIO and power
- Connectors for LCD subboards (2.54 mm)
- Built-in RGB status LED
- Power supply: 5 V (recommended minimum 5 V / 2 A)
- Support for AI acceleration and signal processing
- Dimensions: 123 × 100 mm
