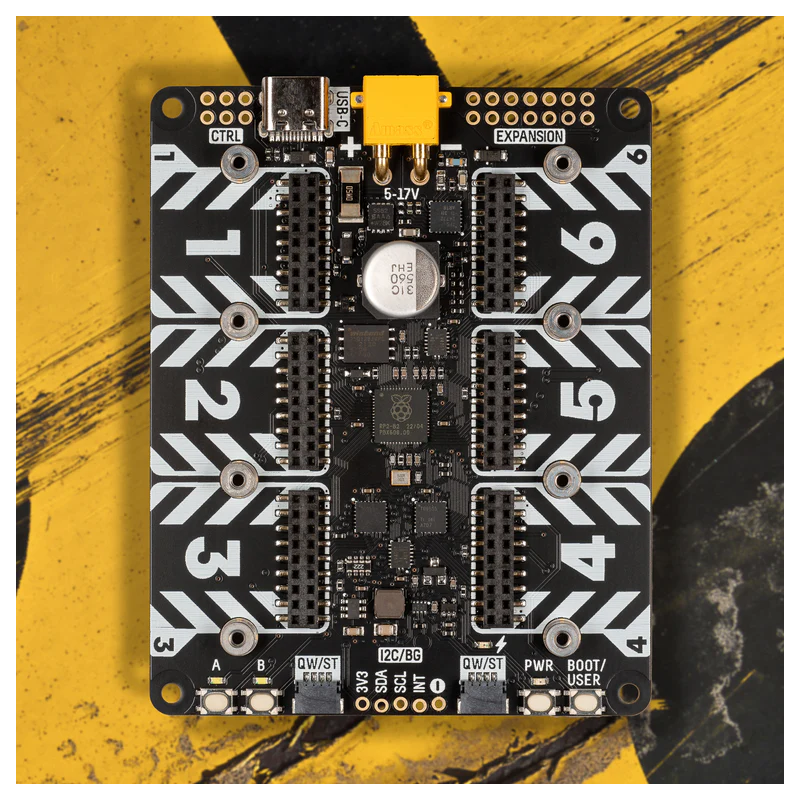

Pimoroni Yukon - development platform with RP2040 microcontroller
ID: 1202083
zł173.25
Tax included
zł140.85 tax excl.
A modular control platform based on the RP2040 microcontroller, designed for advanced robotics and engineering projects. It can simultaneously support up to six high-power modules, such as motor, servo, and LED lighting controllers. Power is supplied via an XT30 connector, ranging from 5 to 17 V, with built-in current and voltage protection. It supports MicroPython programming. Pimoroni PIM687
Description
Pimoroni Yukon is an advanced robotics and engineering platform designed for the most ambitious electronic projects. At its core is the versatile RP2040 microcontroller, known from the Raspberry Pi Pico boards, which delivers high computing performance and flexibility. Yukon acts as a standalone controller capable of supporting up to six interchangeable high-power modules. This makes it possible to simultaneously control motors, servos, stepper motors, speakers, or LED strips. The design prioritizes reliability, which is why each module is screw-mounted, ensuring a stable mechanical and electrical connection.
The platform eliminates the need for complex soldering by using simple connectors, significantly speeding up assembly and project modifications. Yukon is ideal for mobile robots, art installations, stage props, and engineering prototypes. Power is supplied via a robust XT30 connector, supporting 2–4 cell LiPo batteries or other voltage sources. A built-in fuse protects the system against overloads and overvoltage, increasing operational safety. Additional sensors allow real-time monitoring of voltage, current, and temperature. Programming is done in MicroPython, and a rich library of examples enables a quick start even with complex projects. Yukon is a solution created for makers who expect power, modularity, and reliability in a single device.
Features
- RP2040 microcontroller (Dual ARM Cortex-M0+ up to 133 MHz)
- 264 kB SRAM and 16 MB QSPI Flash memory (XiP)
- 6 slots for high-power modules
- XT30 power connector (5 to 17 V, up to 15 A continuous current)
- Built-in e-Fuse (40 A and 18 V protection)
- Power and programming via USB-C
- On-off power button
- 3 user buttons (including BOOTSEL)
- LEDs: 2 power and 2 user LEDs
- 2 × Qwiic/Stemma Qt connectors for accessories
- Input and output voltage, current, and temperature sensors
- Pins for mounting a connector to attach Breakout Garden boards
- Pins for mounting an expansion connector for external buttons and additional inputs/outputs
- M2 mounting holes
- Non-slip rubber feet
- Dimensions: 84 × 67 × 14 mm
1202083
Data sheet
- Microcontroller
- RP2040
- Flash memory
- 16 MB
- Number of I/O
- 06
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 84 mm
- Width
- 67 mm
- USB connector type
- USB type C
