ESP32-P4-WIFI6-POE-ETH-C - ESP32-P4 Development Board Kit with Wi-Fi 6, PoE Ethernet + Camera - Waveshare 32833
ID: 1202659
5902186335462
zł168.14
Tax included
zł136.70 tax excl.
ESP32-P4-WIFI6-POE-ETH-C is a high-performance Waveshare development board based on the ESP32-P4 and ESP32-C6 microcontrollers, designed for advanced HMI, edge computing, multimedia, and networked systems. It supports Wi-Fi 6, Bluetooth 5 LE, 100 Mbps Ethernet with PoE, and a rich set of video, audio, and I/O interfaces. ESP32-P4-WIFI6-POE-ETH-C
Description
The ESP32-P4-WIFI6-POE-ETH-C is designed as a universal platform for developing modern embedded systems that require high computing performance, advanced multimedia interfaces, and stable network connectivity.
At the core of the board is the ESP32-P4, featuring a 32-bit dual-core RISC-V processor running up to 360 MHz, supported by 32 MB PSRAM and 32 MB Flash memory. The chip integrates multimedia accelerators such as an ISP, JPEG codec, and H.264 encoder, enabling efficient image and audio processing for demanding applications.
Wireless communication is handled by an additional ESP32-C6-MINI module, providing Wi-Fi 6 (802.11ax) and Bluetooth 5 LE, connected to the ESP32-P4 via the SDIO interface. The board is also equipped with a 100 Mbps RJ45 Ethernet port with PoE support, allowing power and data transmission over a single Ethernet cable.
The extensive set of interfaces includes MIPI-DSI, MIPI-CSI, USB 2.0 OTG, I2S, SPI, I2C, UART, ADC, PWM, TWAI, and multiple GPIOs. The board features a built-in microphone, audio codec, amplifier, and speaker connector, enabling audio processing and voice interaction projects, including AI-based solutions.
The -C version includes a Raspberry Pi–compatible camera in the kit.

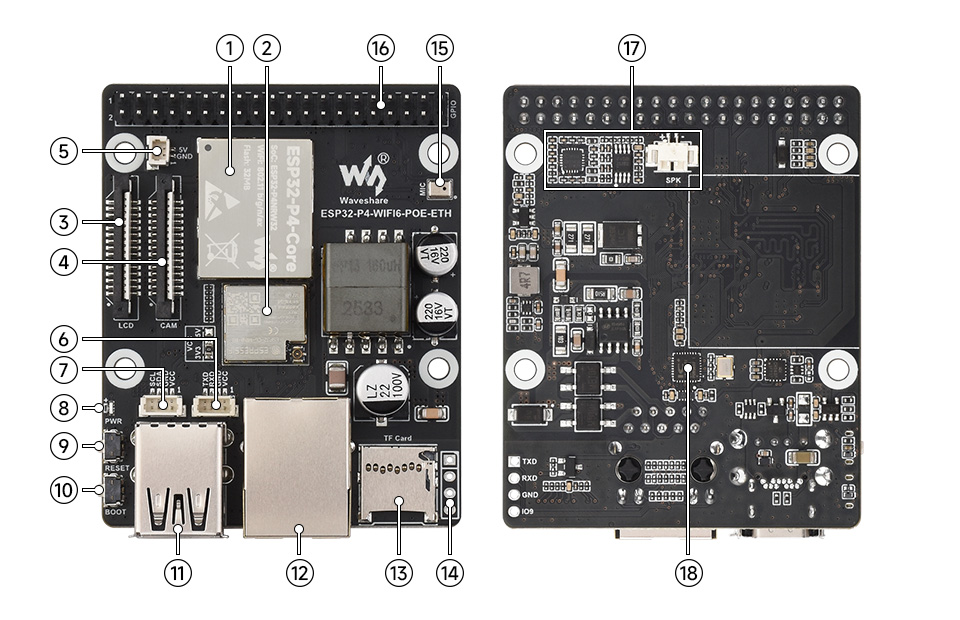

Onboard resources
- ESP32-P4-Core - ESP32-P4NRW32, with 32MB Nor Flash
- ESP32-C6-MINI1-U-H8 module - SDIO interface protocol, extending Wi-Fi 6 / Bluetooth 5 (LE) for ESP32-P4, onboard IPEX 3 connector for external antenna
- Display interface - MIPI-2lane
- Camera interface - MIPI-2lane
- 5V power supply header
- UART header SH1.0 4PIN - for program burning and debugging
- I2C header SH1.0 4PIN - for connecting external 12C devices
- Power indicator
- RST button
- Boot button - Press it when powering on or resetting to enter download mode
- Type-A and Type-C physical stacked design - Type-A as USB OTG 2.0 High Speed port; Type-C as the UART port, for power supply, program burning and debugging
- 100Mbps RJ45 Ethernet port - Supports PoE function
- TF card slot - SDIO 3.0 interface protocol
- ESP32-C6 UART pads
- Onboard microphone
- 40PIN header
- Audio codec chip, amplifier chip and MX1.25 speaker header - MX1.25 2P connector, supports 80 2W speaker
- IP101 - Ethernet chip

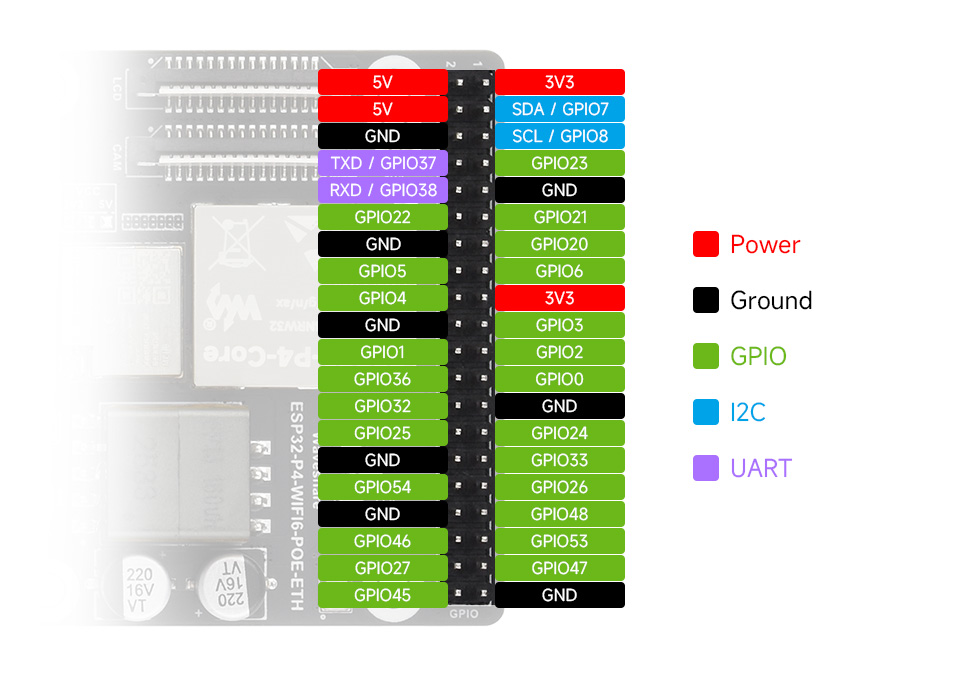

Pinout definition

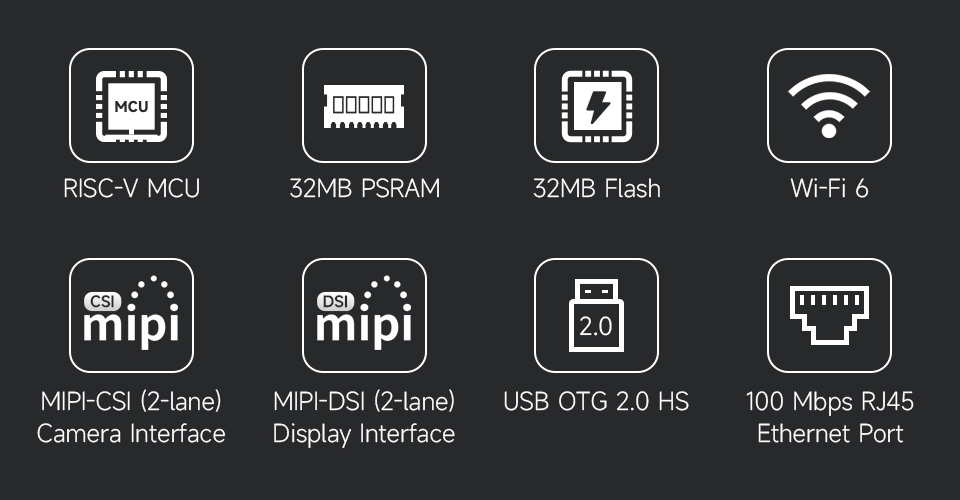

Features
- Microcontrollers
- Main MCU: ESP32-P4, 32-bit RISC-V, dual-core, up to 360 MHz
- Communication MCU: ESP32-C6-MINI (Wi-Fi 6, Bluetooth 5 LE)
- Memory
- Flash memory: 32 MB
- PSRAM: 32 MB
- Connectivity
- Wi-Fi: Wi-Fi 6 (2.4 GHz, 802.11ax)
- Bluetooth: Bluetooth 5 LE
- Ethernet: RJ45 100 Mbps
- PoE power supply: Yes
- Multimedia Interfaces
- Display: MIPI-DSI (2-lane)
- Camera: MIPI-CSI (2-lane)
- Multimedia functions: ISP, JPEG codec, H.264 encoder
- USB and Storage
- USB: USB 2.0 OTG High Speed (Type-A), USB-UART (Type-C)
- TF card slot: SDIO 3.0
- Audio
- On-board microphone
- Audio codec and amplifier
- Speaker connector: MX1.25 2-pin
- Speaker support: 8 Ω / 2 W
- I/O and Peripherals
- GPIO: 2×20 pin headers + programmable GPIOs
- Interfaces: SPI, I2S, I2C, UART, ADC, PWM, MCPWM, RMT, TWAI
- Buttons: BOOT, RESET
- Power indicator LED
- Security
- Secure Boot
- Flash encryption
- TRNG
- Cryptographic accelerators
- Privilege separation mechanisms
- Applications
- HMI
- Edge computing
- Multimedia
- Industrial automation
- Vision systems
- IoT / AIoT
Kit Includes
- ESP32-P4-WIFI6-POE-ETH-C development board
- 2.4 GHz antenna
- 8 Ω / 2 W speaker
- Raspberry Pi Camera (B)
- SH1.0 cables (UART, I2C)
- 15-pin FFC cable
- Mounting hardware (screws, spacers)
