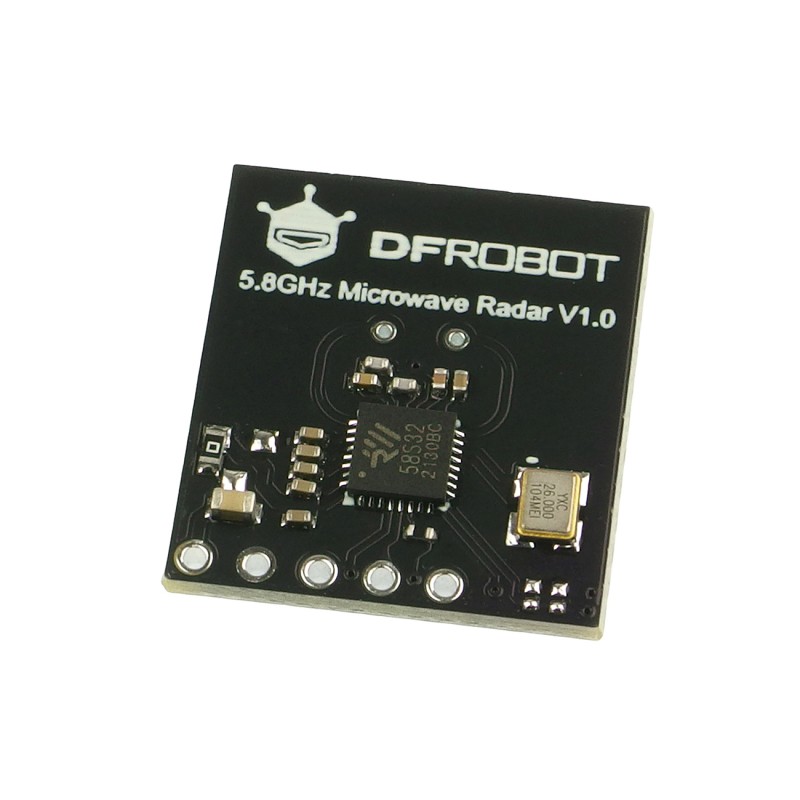

5.8GHz Microwave Radar - module with a motion sensor
ID: 1180506
5902186310582
zł74.51
Tax included
zł60.58 tax excl.
A module with a motion sensor that uses microwaves to detect moving objects. It is powered with the voltage of 5 V and has a digital output. DFRobot SEN0521
Description
A module with a motion sensor that uses microwaves to detect moving objects. It is resistant to radio frequency interference, changes in temperature, humidity and light. The emitted wave has low power and is harmless to humans. Unlike traditional sensors which can only judge human presence by detecting large body movements, this sensor can be good at detecting small movements such as breathing. It can be widely used in industry and transport to measure vehicle speed, liquid level or to automatically detect door movement. The module is powered with the voltage of 5 V and has a digital output (serial interface and IO). The product page includes the manual and sample programs.
Features
- Voltage: 4.5 to 5.5 V
- Current: 22 mA
- Detection distance: 11m
- Transmission power: 3-5dBM
- Detection angle: 120x120 °
- Modulation mode: FMCW, CW
- Working frequency: 5.8 GHz
- Working temperature: -40 to 85 ℃
- Baud Rate: 115200
- Dimensions: 20 x 18mm
Kit contains
- 5.8GHz Microwave Radar module
- Straight 5-pin male goldpin connector
