zł36.06 tax excl.

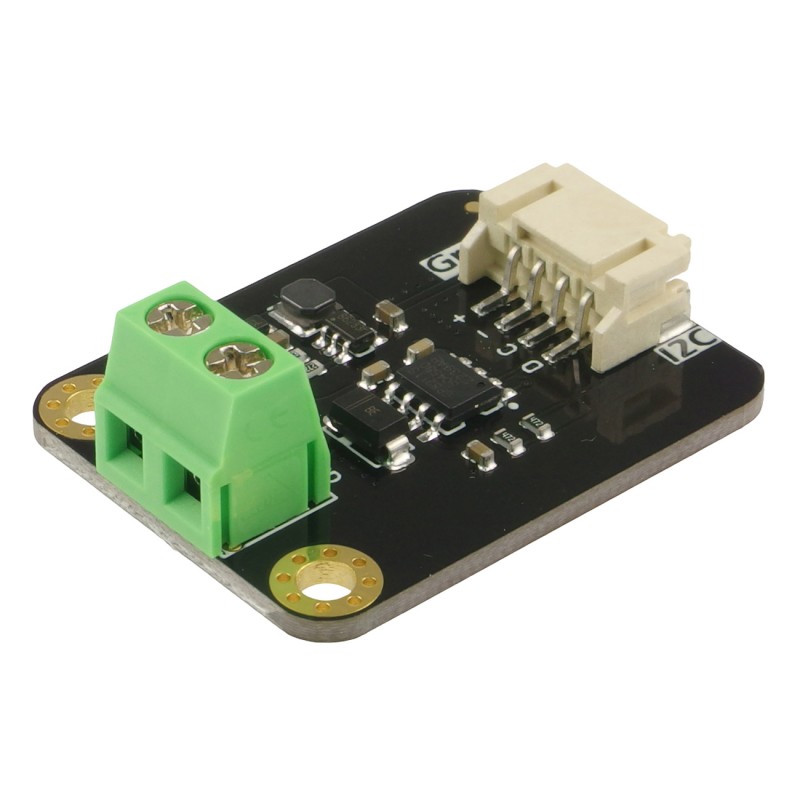

Gravity module designed based on the GP8211 system. It is a single-channel DAC (analog-to-digital) converter with I2C communication that offers an output signal with a resolution of 15-bit and an accuracy of 0.01%. It allows you to generate analog signals with a voltage range from 0 to 10 V or 0 to 5 V. DFRobot DFR1071
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Gravity module designed based on the GP8211 system. It is a single-channel DAC (analog-to-digital) converter with I2C communication that offers an output signal with a resolution of 15-bit and an accuracy of 0.01%. It allows you to generate analog signals with a voltage range from 0 to 10 V or 0 to 5 V. This range is a standard control method and can be used in various automation applications, such as lighting regulation, frequency converters, valve regulation or pump control. . The module's high precision and resolution make it a suitable solution for projects that require high signal accuracy, such as precise speed or angle control. With this module, the user can achieve precise control of analog signals, making it a versatile tool for a variety of applications in the field of automation and DIY projects.
Features
- Chip type: GP8211
- Communication interface: I2C
- Resolution: 15-bit
- Output voltage: 0 to 5V or 0 to 10V
- Number of channels: 1 channel
- Value range: 0 to 32767 corresponding to 0-5V or 0-10V
- Accuracy: 0.01%
- Supply voltage: 3.3V to 5V
- Dimensions: 28 x 35 mm
Kit contains
- GP8211 Module: 1-Channel 15-bit I2C to 0-5V/10V DAC
- Gravity-4P I2C/UART cable
