Pimoroni Yukon - development platform with RP2040 microcontroller

This compact module allows for convenient control of servos communicating via UART in half-duplex or full-duplex mode, making it suitable for a variety of robotic projects. Equipped with Molex connectors and additional pins, it allows for easy integration of popular servos, such as the LX-16A, as well as models from other manufacturers. The module offers high-current power output, ensuring stable operation of complex systems with multiple servos. Pimoroni PIM697

This module supports four servos with direct power supply ranging from 5-17V, allowing for the construction of high-power designs. The module features standard servo connectors and two analog inputs that can be used to interface with sensors or servos with feedback. Pimoroni PIM695

This module for the Pimoroni Yukon system allows for simultaneous control of four servos. It features a stabilized power supply with adjustable voltage of 5V, 6V, or 7.4V and a TPS54A24 step-down converter, supporting up to 5A continuous and 10A peak current. The module has built-in temperature sensors and a power status signal for increased safety. Pimoroni PIM696

A prototyping module that allows you to quickly create custom extensions for the Pimoroni Yukon system. All power lines and I/O headers are provided as 2.54mm pitch pads, making it easy to connect THT components. The 6x4 pad prototyping area allows you to commission and test your solution without designing your own PCBs. Pimoroni PIM698

This module controls addressable LED strips in the Pimoroni Yukon system, featuring a stable 5V/5A output and a voltage level converter for proper communication with RGB LEDs. It allows for easy connection of strips via screw terminals and works with popular standards such as WS2812, SK6812, APA102, and Dotstar. The module can even control two WS2812 strips simultaneously, offering high performance and flexibility. Pimoroni PIM694

A compact motor controller designed for the Pimoroni Yukon platform, capable of driving two DC motors or one bipolar stepper motor. The DRV8424P chip provides stable control with a supply voltage of 5 to 17 V and a current of up to 1.6 A continuous per channel. The module offers adjustable current limiting, thermal protection, and error detection. Pimoroni PIM693

This power supply module for the Pimoroni Yukon offers an adjustable output voltage from 3 to 12V using a powerful step-down converter. It provides stable power with a continuous current of 5A and a peak current of up to 10A, as well as the ability to set a fixed 5V output by cutting a dedicated trace. The module allows for the use of additional digital signals and monitoring of voltage, temperature, and power supply status. Pimoroni PIM690

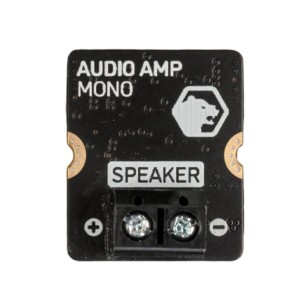

A class-D audio amplifier designed for the Pimoroni Yukon platform, offering up to 25W of mono output. The module allows for connection to speakers with an impedance of 4Ω or greater and delivers clean, dynamic sound thanks to the TAS2780 chip. Equipped with a temperature sensor and screw terminals, it\'s ready to use, no soldering required. Pimoroni PIM689
