IMX296 1.6 MP M12 Global Shutter Monochrome Camera - Waveshare 32427
ID: 1202680
zł320.98
Tax included
zł260.96 tax excl.

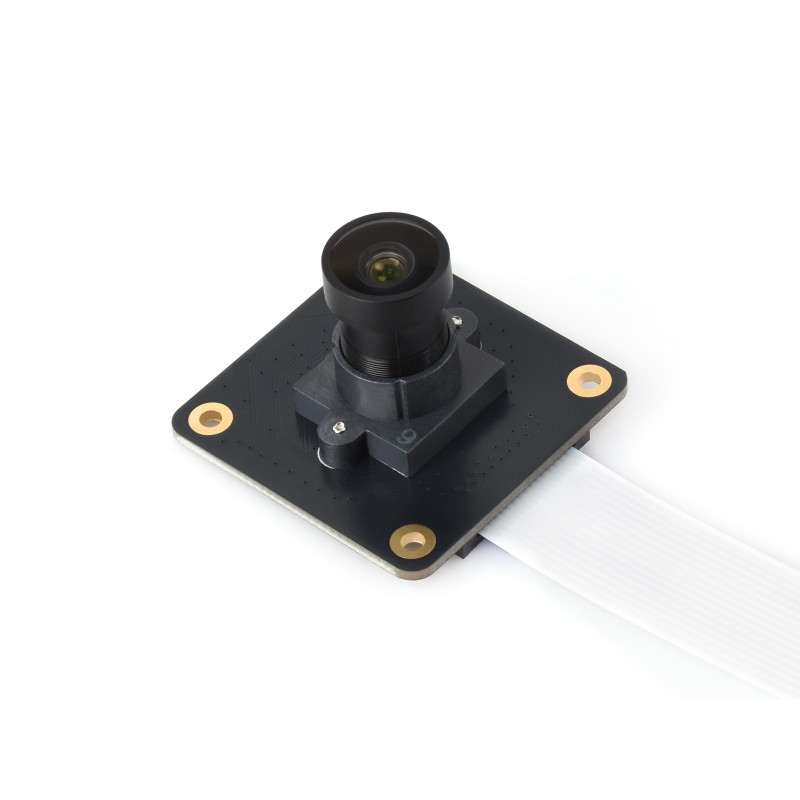

Monochrome camera module with a Sony IMX296 sensor featuring a resolution of 1.6 MP (1456 × 1088), equipped with a global shutter for capturing fast-moving objects without image distortion. The M12 lens with a 130° field of view and CSI interface enables compatibility with Raspberry Pi boards for machine vision and imaging applications. Waveshare IMX296-130 BW Camera
Description
The Waveshare 32427 IMX296-130 BW monochrome camera module is intended for applications requiring precise image capture without distortions typical of rolling shutter sensors. The monochrome Sony IMX296 sensor with a resolution of 1.6 MP is equipped with a global shutter, allowing simultaneous exposure of all pixels. This solution ensures accurate imaging of fast-moving objects without the “jelly effect”.
The camera module uses an M12 lens with a wide 130° field of view, enabling observation of a large area in vision-based applications. The camera is designed to work with Raspberry Pi series boards and is supplied with two FFC cables (15-pin and 22-pin), ensuring compatibility with different CSI connector variants. The design is suitable for machine vision systems, automation, robotics, and image analysis.
Features
- Sensor: Sony IMX296
- Sensor type: CMOS, monochrome
- Resolution: 1.58 MP (1456 × 1088)
- Shutter type: global shutter
- Sensor diagonal size: 6.3 mm
- Pixel size: 3.45 µm × 3.45 µm
- Lens mount: M12
- Lens aperture: F1.6
- Back focal length (BFL): 3.0 mm
- Field of view (FOV): 130° (D), 99° (H), 72° (V)
- Distortion: < 20%
- Interface: CSI
- Compatibility: Raspberry Pi (all series)
- Applications: machine vision, motion capture, vision systems
Kit includes
- IMX296-130 BW camera – 1 pc
- CSI cable 22-pin to 15-pin – 1 pc
- CSI cable 15-pin – 1 pc
1202680
Data sheet
- Resolution
- 1,58 MP
- Interface
- CSI
- Sensor
- Sony IMX296
- IR filter
- No
- Lens assembly
- M12x0.5
