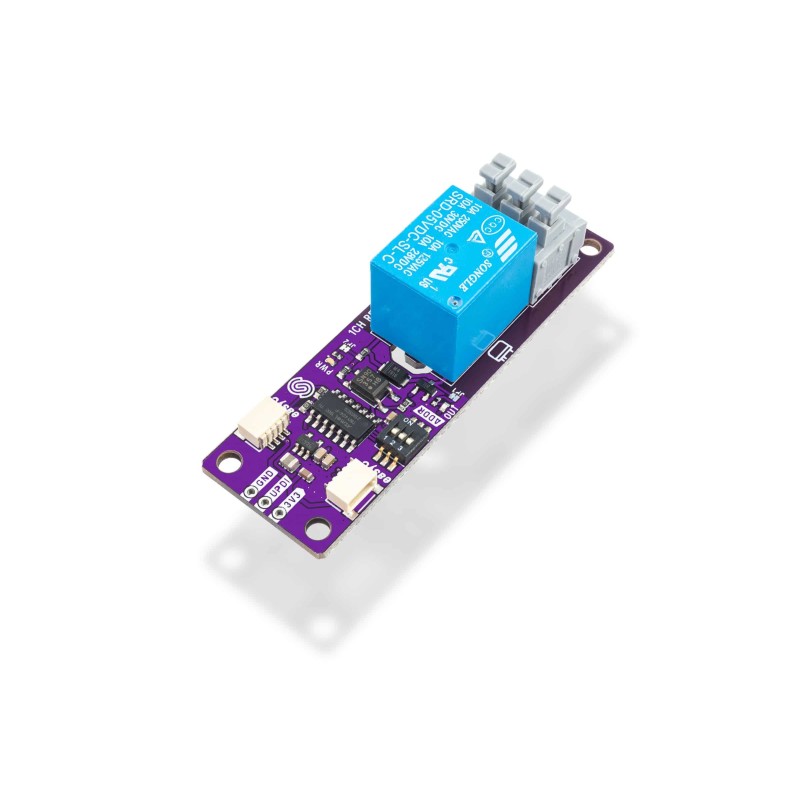

Soldered 1-Channel Relay Board with Qwiic - 1-channel Qwiic relay module 10A 250V AC / 30V DC
ID: 1208246
zł35.25
Tax included
zł28.66 tax excl.
Single-channel relay module equipped with a Qwiic interface, designed for controlling AC and DC loads using a microcontroller. The relay supports loads of up to 10 A at 250 V AC or 10 A at 30 V DC, while the Qwiic connector allows the module to be connected without soldering using a suitable cable. Soldered 333021
Description
The board uses 1 electromechanical relay for switching loads with voltages of up to 250 V AC or 30 V DC and currents of up to 10 A. The built-in Qwiic interface allows the module to be connected to a compatible microcontroller using a ready-made cable without soldering the communication connection. The board can be used in automation systems and for controlling lighting, motors, solenoid valves, and other AC or DC loads.
The module can operate as part of the Qwiic ecosystem, making it easier to connect with other compatible boards. The 2.54 mm pin pitch also allows the board to be used in prototype circuits. The mounting holes are compatible with LEGO spacing, and the board measures 70 x 22 mm. The manufacturer provides an Arduino library with documentation and open-source hardware design files.
Features
- Type: 1-channel relay module
- Switching element: electromagnetic relay
- Number of channels: 1
- Number of relays: 1
- Maximum DC switching voltage: 30 V
- Maximum DC switching current: 10 A
- Maximum AC switching voltage: 250 V
- Maximum AC switching current: 10 A
- Interface: Qwiic
- Solderless Qwiic connection
- Pin pitch: 2.54 mm
- Breadboard-compatible design
- LEGO-compatible mounting holes
- Dimensions: 70 x 22 mm
- Arduino library support
- Open-source design
- Manufactured in Croatia, EU
1208246
Data sheet
- Output current
- 10A
- Number of channels
- 1
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 30 VDC / 250 VAC
